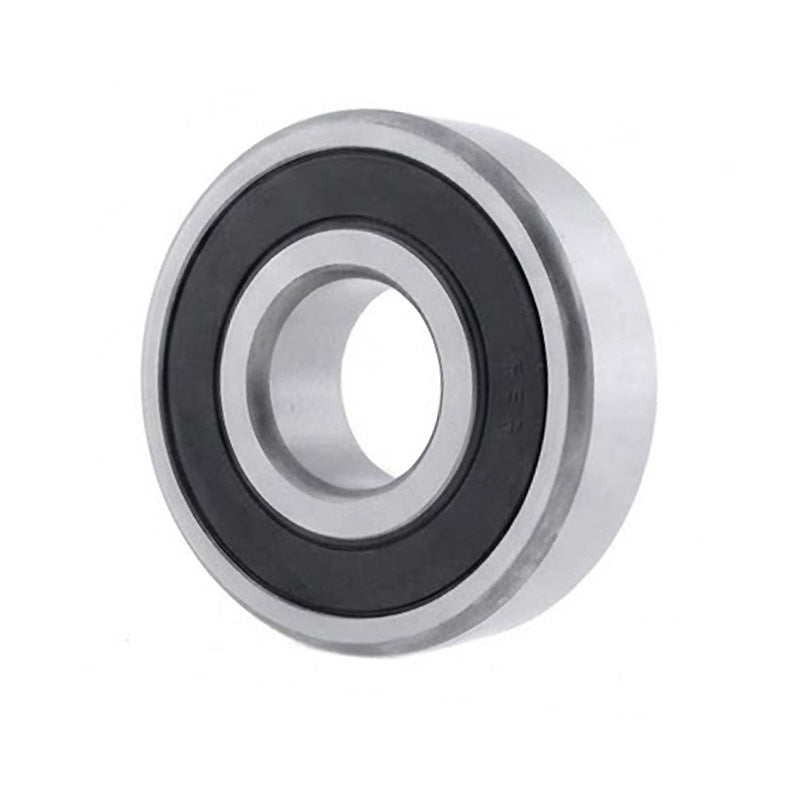

42152RS Budget Sealed Double Row Deep Groove Ball Bearing 75x130x31mm

SKU: 4215-2RS-EU

42152RS Budget Sealed Double Row Deep Groove Ball Bearing 75x130x31mm

$114.68 ex VAT
$114.68
ex VAT
Equivalent to: LDJ75
In stock

Quantity Price Breaks

10 $102.07
19 $96.33
29 $95.18
39 $94.04
49 $92.89
74 $91.74
99 $86.01
199 $84.86
249 $83.72
499 $82.57
999 $80.28
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
42152RS Budget Sealed Double Row Deep Groove Ball Bearing 75x130x31mm
SKU: 4215-2RS-EU

42152RS Budget Sealed Double Row Deep Groove Ball Bearing 75x130x31mm

$114.68 ex VAT
$114.68
ex VAT

Description

Sealed Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability
Benefits: Higher axial and radial load than single row, same bore and diameter as single row equivalent size, rubber sealed

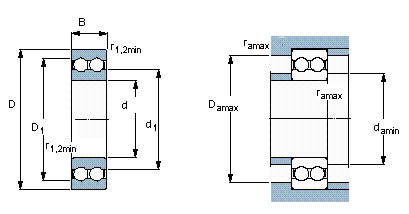

Technical

d = 75mm
D = 130mm
B = 31mm
Dynamic load C = 72.8 kN
Static load Co = 80 kN
Fatigue load limit Pu = 3.35 kN
Reference speed = 7500 rpm
Limiting speed = 4000 rpm
Weight = 1.6 kg
d1 = 96.9mm
D1 = 114mm
r1r2 min = 1.5mm
da min = 84mm
Da max = 121mm
ra max = 1.5mm
kr = 0.05
fo = 16
