SKU: 40B-2-NO11-DUN
Branded 40B-2-NO11 BS Duplex Chain Cottered Connecting Link 2-1/2 inch Pitch
- Regular price
- $115.01 ex VAT
- Sale price
- $115.01
- Regular price
-
Not in stock
Quantity Price Breaks
2
$102.36
5
$96.61
10
$95.46
29
$94.31
49
$93.16
75
$92.01
100
$86.26
200
$85.11
250
$83.96
500
$82.81
1000
$80.51
SKU:
40B-2-NO11-DUN
Branded 40B-2-NO11 BS Duplex Chain Cottered Connecting Link 2-1/2 inch Pitch
- Regular price
- $115.01 ex VAT
- Sale price
- $115.01
- Regular price
-
Description

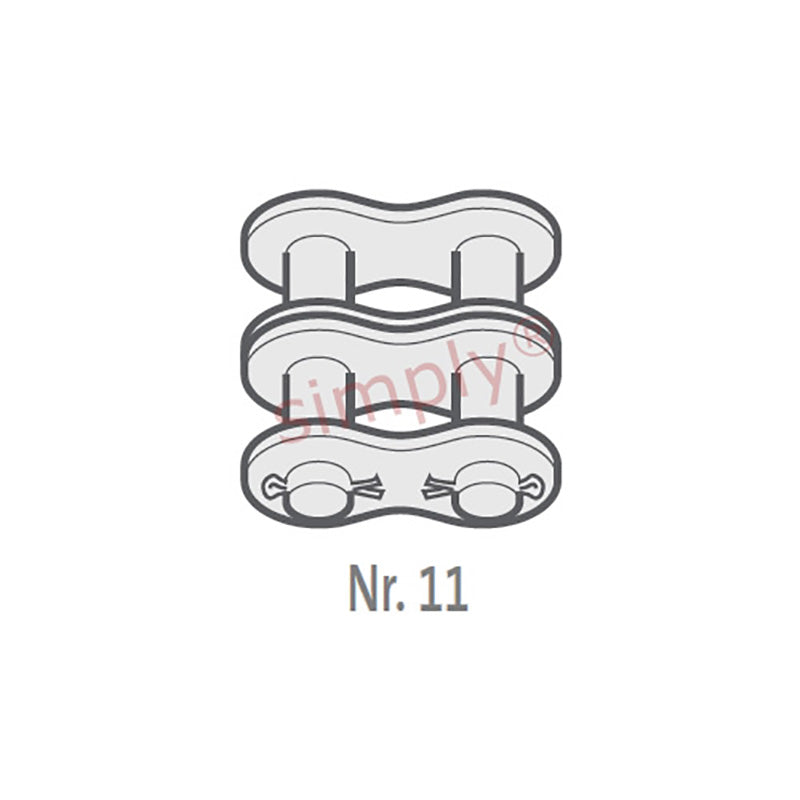

Dunlop COT / No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Technical
| Pitch (A) | = | 2.5 inch |
| Pitch (A) | = | 63.5mm |
| Inside Width min (B) | = | 39.3mm |
| Roller Diameter max (C) | = | 39.37mm |
| Plate Height max (D) | = | 52.96mm |
| Plate Width Inner max (E) | = | 8.13mm |
| Plate Width Outer max (F) | = | 8.13mm |
| Pin Diameter max (G) | = | 22.89mm |
| Pin Length max (H2) | = | 150.5mm |
| Connecting Link Extension max (J) | = | 9.5mm |
| Transverse Pitch nom (K) | = | 72.29mm |
| ISO606 Tensile Strength min | = | 630000 N |
| Weight | = | 2kg/m |
