SKU: 40-2-SYN-NO11-RENOLD
Renold Synergy 40-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- $35.88 ex VAT
- Sale price
- $35.88
- Regular price
-
Not in stock
Quantity Price Breaks
2
$31.93
5
$30.14
10
$29.78
29
$29.42
49
$29.06
75
$28.70
100
$26.91
200
$26.55
250
$26.19
500
$25.83
1000
$25.12
SKU:
40-2-SYN-NO11-RENOLD
Renold Synergy 40-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- $35.88 ex VAT
- Sale price
- $35.88
- Regular price
-
Description

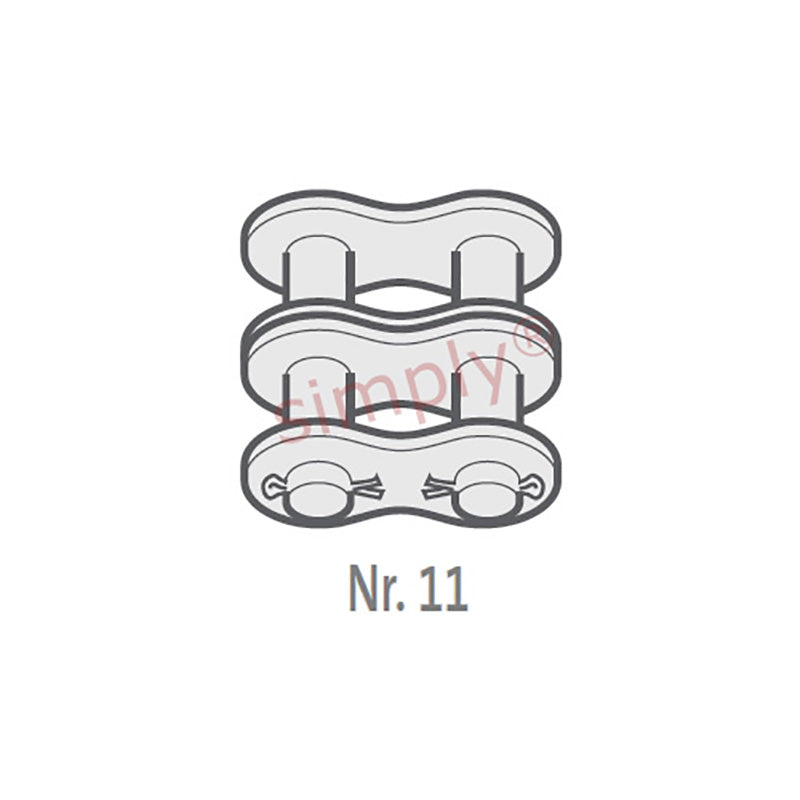

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.97mm |
| Pin Length max (H2) | = | 30.8mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| Transverse Pitch nom (K) | = | 14.38mm |
| ISO606 Tensile Strength min | = | 27800 N |
| Weight | = | 0.02kg/m |
