SKU: 40-1-BB-NO12-RENOLD
Renold Blue Box 40-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- $20.89 ex VAT
- Sale price
- $20.89
- Regular price
-
In stock
Quantity Price Breaks
2
$18.59
5
$17.55
10
$17.34
29
$17.13
49
$16.92
75
$16.71
100
$15.67
200
$15.46
250
$15.25
500
$15.04
1000
$14.62
SKU:
40-1-BB-NO12-RENOLD
Renold Blue Box 40-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- $20.89 ex VAT
- Sale price
- $20.89
- Regular price
-
Description

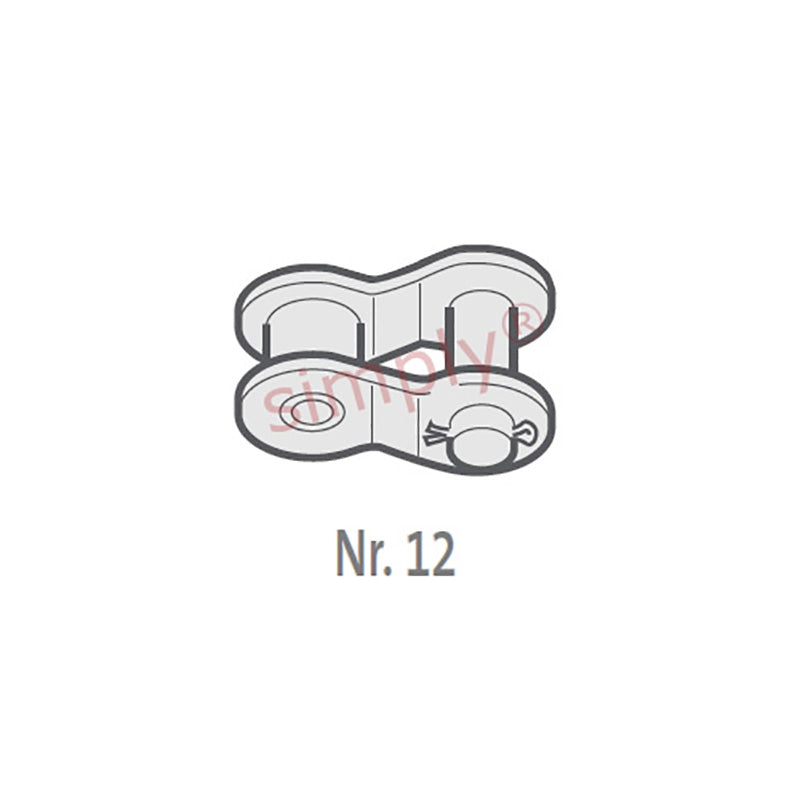

| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 6.35mm |
| Roller Diameter max (C) | = | 7.77mm |
| Plate Height max (D) | = | 9.91mm |
| Plate Width Inner max (E) | = | 1.3mm |
| Plate Width Outer max (F) | = | 1.3mm |
| Pin Diameter max (G) | = | 3.96mm |
| Pin Length max (H2) | = | 14.5mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| ISO606 Tensile Strength min | = | 6700 N |
| Weight | = | 0.01kg/m |
