SKU: 35-3-SYNERGY-10FT-RENOLD

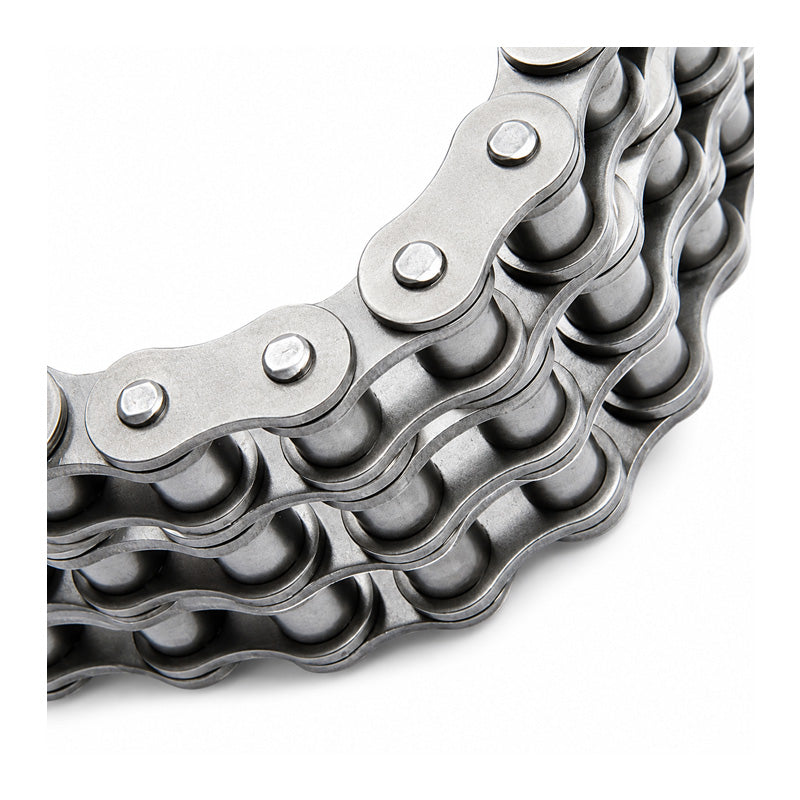

Renold Synergy 35-3 ANSI / AS Triplex Roller Chain 3/8 inch Pitch - 10 Feet Length
- Regular price
- $1,245.72 ex VAT
- Sale price
- $1,245.72
- Regular price
-
In stock
Quantity Price Breaks
10+
$1,108.69
19+
$1,046.40
29+
$1,033.95
39+
$1,021.49
49+
$1,009.03
74+
$996.58
99+
$934.29
199+
$921.83
249+
$909.38
499+
$896.92
999+
$872.00
SKU:
35-3-SYNERGY-10FT-RENOLD
Renold Synergy 35-3 ANSI / AS Triplex Roller Chain 3/8 inch Pitch - 10 Feet Length
- Regular price
- $1,245.72 ex VAT
- Sale price
- $1,245.72
- Regular price
-
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 4.68mm |
| Roller Diameter max (C) | = | 5.08mm |
| Plate Height max (D) | = | 8.6mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.29mm |
| Pin Diameter max (G) | = | 3.59mm |
| Pin Length max (H1) | = | 32.2mm |
| Connecting Link Extension max (J) | = | 1.7mm |
| ISO606 Tensile Strength min | = | 23700 N |
| Weight | = | 0.93kg/m |
