SKU: 35-3-BB-NO11-RENOLD
Renold Blue Box 35-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 3/8 inch Pitch
- Regular price
- $24.44 ex VAT
- Sale price
- $24.44
- Regular price
-
Not in stock
Quantity Price Breaks
2
$21.75
5
$20.53
10
$20.29
29
$20.04
49
$19.80
75
$19.55
100
$18.33
200
$18.09
250
$17.84
500
$17.60
1000
$17.11
SKU:
35-3-BB-NO11-RENOLD
Renold Blue Box 35-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 3/8 inch Pitch
- Regular price
- $24.44 ex VAT
- Sale price
- $24.44
- Regular price
-
Description

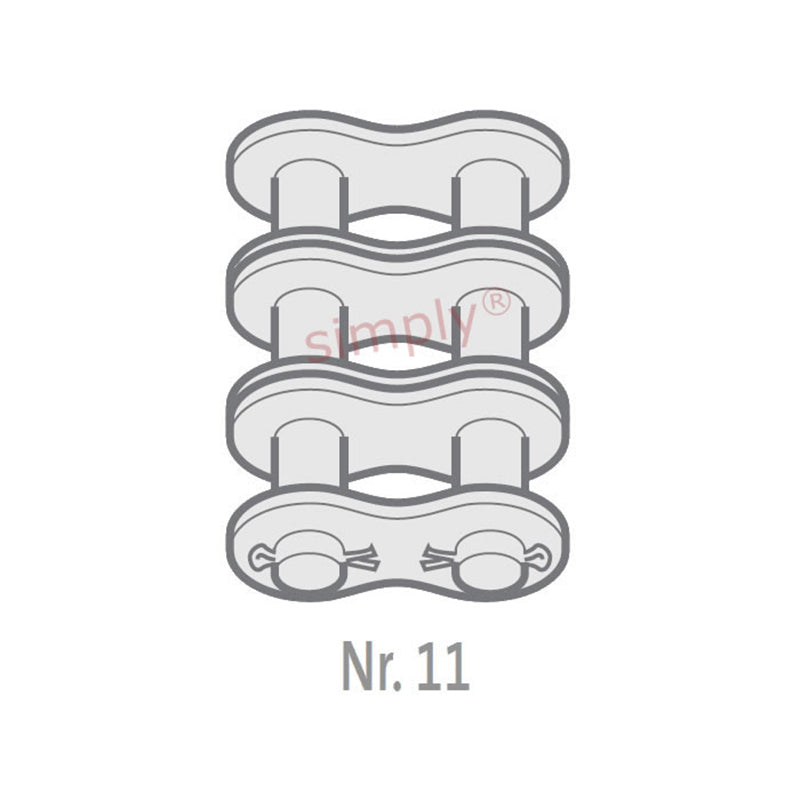

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 4.68mm |
| Roller Diameter max (C) | = | 5.08mm |
| Plate Height max (D) | = | 8.6mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.29mm |
| Pin Diameter max (G) | = | 3.59mm |
| Pin Length max (H2) | = | 32.2mm |
| Connecting Link Extension max (J) | = | 1.7mm |
| Transverse Pitch nom (K) | = | 10.13mm |
| ISO606 Tensile Strength min | = | 23700 N |
| Weight | = | 1.8kg/m |
