SKU: 35-1-BB-NO26-RENOLD
Renold Blue Box 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- $11.84 ex VAT
- Sale price
- $11.84
- Regular price
-
In stock
Quantity Price Breaks
2
$10.54
5
$9.95
10
$9.83
29
$9.71
49
$9.59
75
$9.47
100
$8.88
200
$8.76
250
$8.64
500
$8.52
1000
$8.29
SKU:
35-1-BB-NO26-RENOLD
Renold Blue Box 35-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- $11.84 ex VAT
- Sale price
- $11.84
- Regular price
-
Description

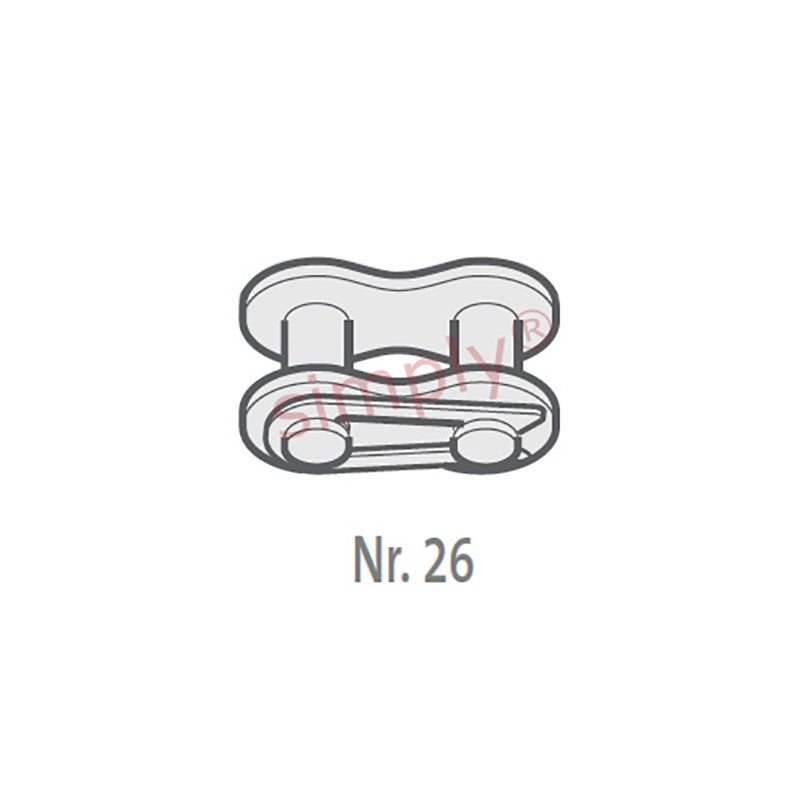

| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 4.68mm |
| Roller Diameter max (C) | = | 5.08mm |
| Plate Height max (D) | = | 8.6mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.29mm |
| Pin Diameter max (G) | = | 3.59mm |
| Pin Length max (H2) | = | 12mm |
| Connecting Link Extension max (J) | = | 1.7mm |
| ISO606 Tensile Strength min | = | 7900 N |
| Weight | = | 0.008kg/m |
