SKU: 35-1-BB-NO12-RENOLD
Renold Blue Box 35-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/8 inch Pitch
- Regular price
- $19.27 ex VAT
- Sale price
- $19.27
- Regular price
-
In stock
Quantity Price Breaks
2
$17.15
5
$16.19
10
$15.99
29
$15.80
49
$15.61
75
$15.42
100
$14.45
200
$14.26
250
$14.07
500
$13.87
1000
$13.49
SKU:
35-1-BB-NO12-RENOLD
Renold Blue Box 35-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/8 inch Pitch
- Regular price
- $19.27 ex VAT
- Sale price
- $19.27
- Regular price
-
Description

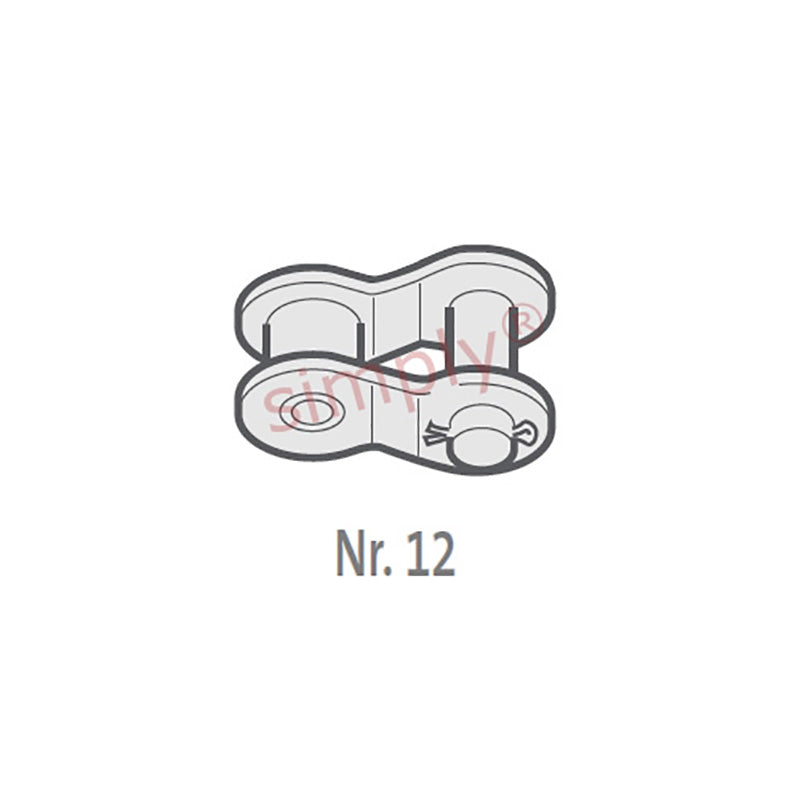

| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 4.68mm |
| Roller Diameter max (C) | = | 5.08mm |
| Plate Height max (D) | = | 8.6mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.29mm |
| Pin Diameter max (G) | = | 3.59mm |
| Pin Length max (H2) | = | 12mm |
| Connecting Link Extension max (J) | = | 1.7mm |
| ISO606 Tensile Strength min | = | 7900 N |
| Weight | = | 0.008kg/m |
