SKU: 3315-2Z-EU

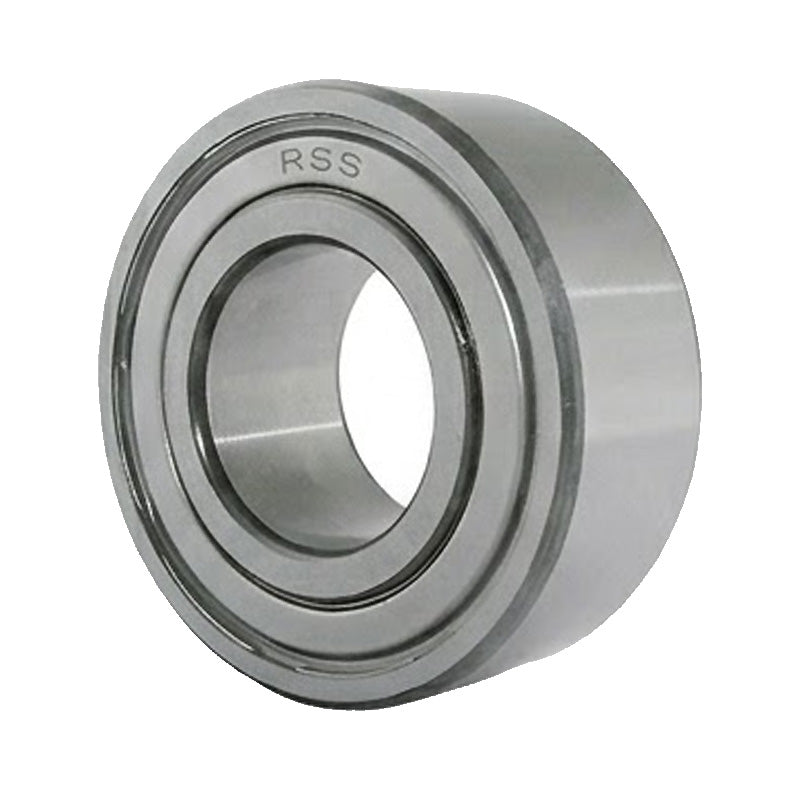

33152Z Budget Shielded Double Row Angular Contact Ball Bearing 75x160x68.3mm
- Regular price
- $437.44 ex VAT
- Sale price
- $437.44
- Regular price
-
Not in stock
Quantity Price Breaks
10
$389.32
19
$367.45
29
$363.08
39
$358.70
49
$354.33
74
$349.95
99
$328.08
199
$323.71
249
$319.33
499
$314.96
999
$306.21
SKU:
3315-2Z-EU
33152Z Budget Shielded Double Row Angular Contact Ball Bearing 75x160x68.3mm
- Regular price
- $437.44 ex VAT
- Sale price
- $437.44
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 75mm |
| D | = | 160mm |
| B | = | 68.3mm |
| Dynamic load C | = | 176 kN |
| Static load Co | = | 140 kN |
| Fatigue load limit Pu | = | 5.5 kN |
| Reference speed | = | 4000 rpm |
| Weight | = | 5.6 kg |
| d1 | = | 88.8mm |
| D1 | = | 147mm |
| r1r2 min | = | 2.1mm |
| a | = | 97mm |
| da min | = | 87mm |
| da max | = | 88.5mm |
| Da max | = | 148mm |
| ra max | = | 2mm |
