SKU: 3310-2Z-EU

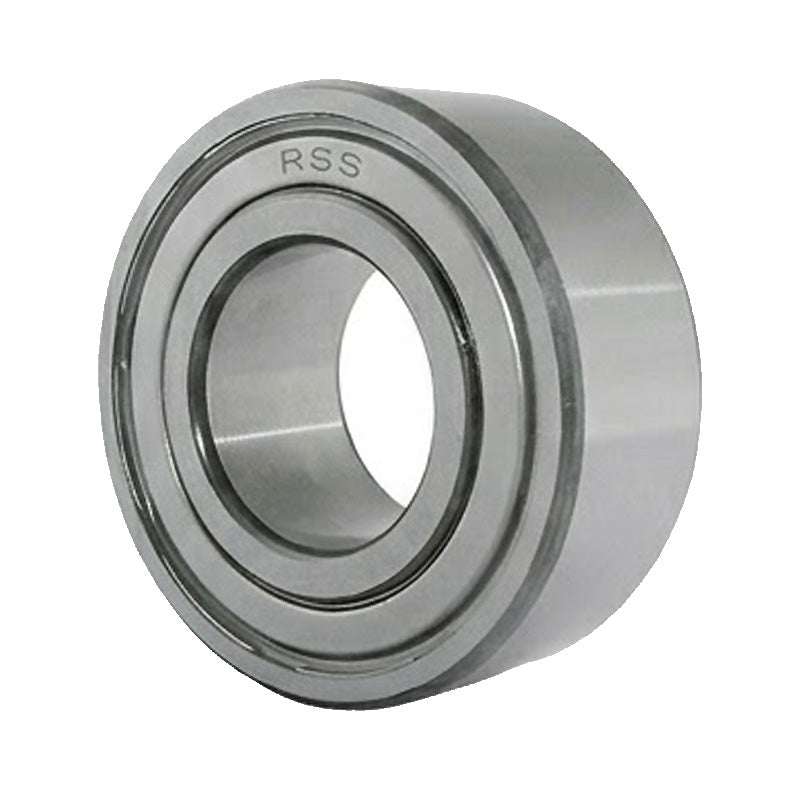

33102Z Budget Shielded Double Row Angular Contact Ball Bearing 50x110x44.4mm
- Regular price
- $156.42 ex VAT
- Sale price
- $156.42
- Regular price
-
Not in stock
Quantity Price Breaks
10
$139.21
19
$131.39
29
$129.83
39
$128.26
49
$126.70
74
$125.14
99
$117.32
199
$115.75
249
$114.19
499
$112.62
999
$109.49
SKU:
3310-2Z-EU
33102Z Budget Shielded Double Row Angular Contact Ball Bearing 50x110x44.4mm
- Regular price
- $156.42 ex VAT
- Sale price
- $156.42
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 50mm |
| D | = | 110mm |
| B | = | 44.4mm |
| Dynamic load C | = | 90 kN |
| Static load Co | = | 64 kN |
| Fatigue load limit Pu | = | 2.75 kN |
| Reference speed | = | 6000 rpm |
| Weight | = | 1.7 kg |
| d1 | = | 62mm |
| D1 | = | 99.5mm |
| r1r2 min | = | 2mm |
| a | = | 65mm |
| da min | = | 61mm |
| da max | = | 61.5mm |
| Da max | = | 99.5mm |
| ra max | = | 2mm |
