SKU: 3309-2Z-EU

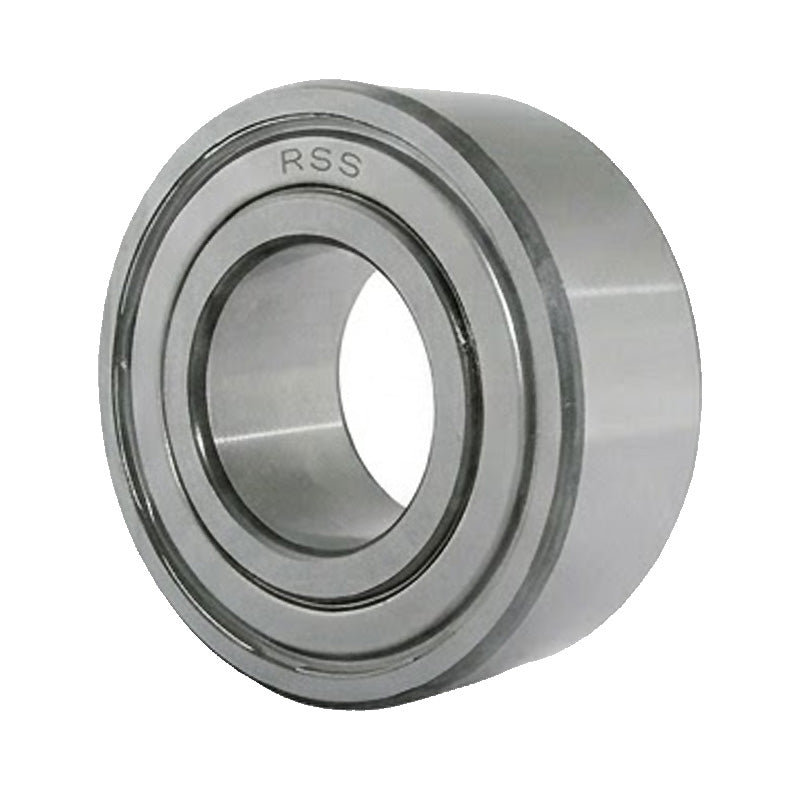

33092Z Budget Shielded Double Row Angular Contact Ball Bearing 45x100x39.7mm
- Regular price
- $112.41 ex VAT
- Sale price
- $112.41
- Regular price
-
In stock
Quantity Price Breaks
10
$100.04
19
$94.42
29
$93.30
39
$92.18
49
$91.05
74
$89.93
99
$84.31
199
$83.18
249
$82.06
499
$80.94
999
$78.69
SKU:
3309-2Z-EU
33092Z Budget Shielded Double Row Angular Contact Ball Bearing 45x100x39.7mm
- Regular price
- $112.41 ex VAT
- Sale price
- $112.41
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 45mm |
| D | = | 100mm |
| B | = | 39.7mm |
| Dynamic load C | = | 75 kN |
| Static load Co | = | 53 kN |
| Fatigue load limit Pu | = | 2.24 kN |
| Reference speed | = | 6700 rpm |
| Weight | = | 1.25 kg |
| d1 | = | 55.6mm |
| D1 | = | 90mm |
| r1r2 min | = | 1.5mm |
| a | = | 58mm |
| da min | = | 54mm |
| da max | = | 55.5mm |
| Da max | = | 91mm |
| ra max | = | 1.5mm |
