SKU: 3307-2Z-EU

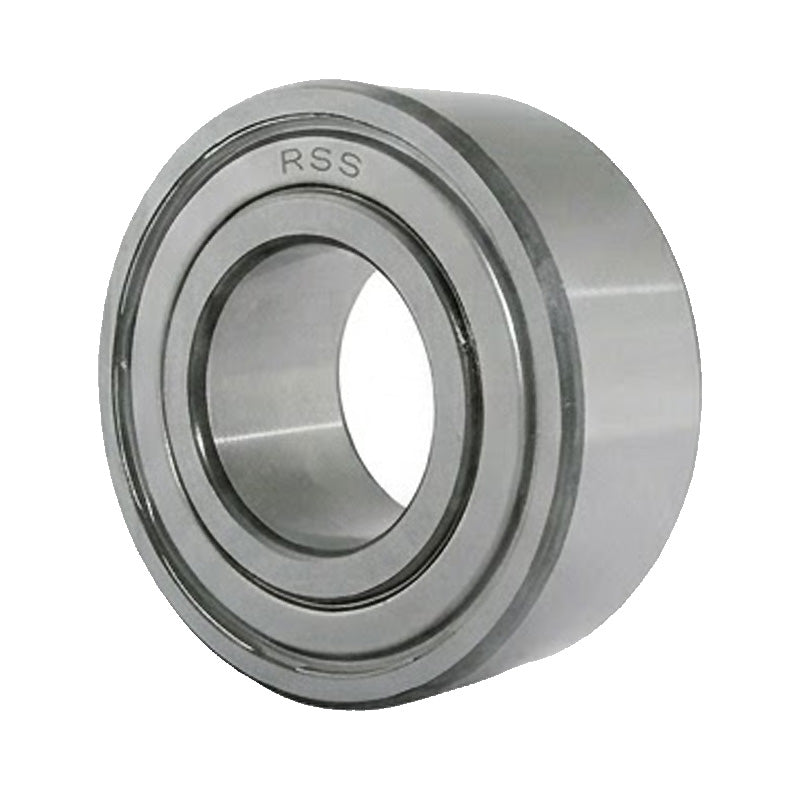

33072Z Budget Shielded Double Row Angular Contact Ball Bearing 35x80x34.9mm
- Regular price
- $70.06 ex VAT
- Sale price
- $70.06
- Regular price
-
In stock
Quantity Price Breaks
10
$62.35
19
$58.85
29
$58.15
39
$57.45
49
$56.75
74
$56.05
99
$52.55
199
$51.84
249
$51.14
499
$50.44
999
$49.04
SKU:
3307-2Z-EU
33072Z Budget Shielded Double Row Angular Contact Ball Bearing 35x80x34.9mm
- Regular price
- $70.06 ex VAT
- Sale price
- $70.06
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 35mm |
| D | = | 80mm |
| B | = | 34.9mm |
| Dynamic load C | = | 52 kN |
| Static load Co | = | 35.5 kN |
| Fatigue load limit Pu | = | 1.5 kN |
| Reference speed | = | 8500 rpm |
| Weight | = | 0.73 kg |
| d1 | = | 44.6mm |
| D1 | = | 70.5mm |
| r1r2 min | = | 1.5mm |
| a | = | 47mm |
| da min | = | 44mm |
| da max | = | 44.5mm |
| Da max | = | 71mm |
| ra max | = | 1.5mm |
