SKU: 3304-2Z-EU

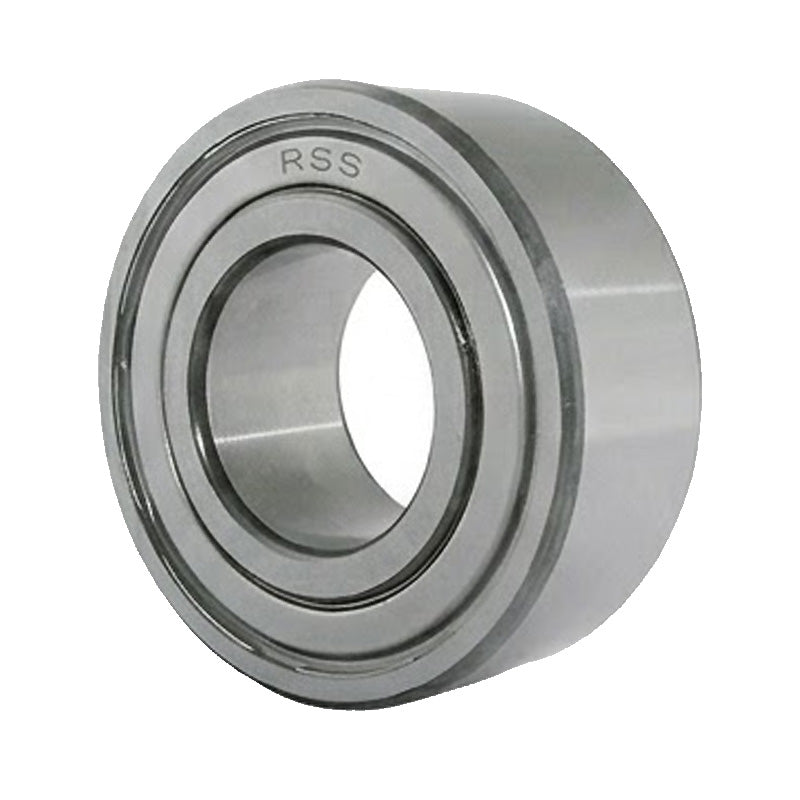

33042Z Budget Shielded Double Row Angular Contact Ball Bearing 20x52x22.2mm
- Regular price
- $41.97 ex VAT
- Sale price
- $41.97
- Regular price
-
In stock
Quantity Price Breaks
10
$37.35
19
$35.25
29
$34.84
39
$34.42
49
$34.00
74
$33.58
99
$31.48
199
$31.06
249
$30.64
499
$30.22
999
$29.38
SKU:
3304-2Z-EU
33042Z Budget Shielded Double Row Angular Contact Ball Bearing 20x52x22.2mm
- Regular price
- $41.97 ex VAT
- Sale price
- $41.97
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 20mm |
| D | = | 52mm |
| B | = | 22.2mm |
| Dynamic load C | = | 23.6 kN |
| Static load Co | = | 14.6 kN |
| Fatigue load limit Pu | = | 0.62 kN |
| Reference speed | = | 13000 rpm |
| Weight | = | 0.22 kg |
| d1 | = | 29.9mm |
| D1 | = | 44mm |
| r1r2 min | = | 1.1mm |
| a | = | 30mm |
| da min | = | 27mm |
| da max | = | 29.5mm |
| Da max | = | 45mm |
| ra max | = | 1mm |
