SKU: 32B-2-BB-NO11-RENOLD
Renold Blue Box 32B-2-NO11 BS Duplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- $229.52 ex VAT
- Sale price
- $229.52
- Regular price
-
Not in stock
Quantity Price Breaks
2
$204.27
5
$192.80
10
$190.50
29
$188.21
49
$185.91
75
$183.62
100
$172.14
200
$169.84
250
$167.55
500
$165.25
1000
$160.66
SKU:
32B-2-BB-NO11-RENOLD
Renold Blue Box 32B-2-NO11 BS Duplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- $229.52 ex VAT
- Sale price
- $229.52
- Regular price
-
Description

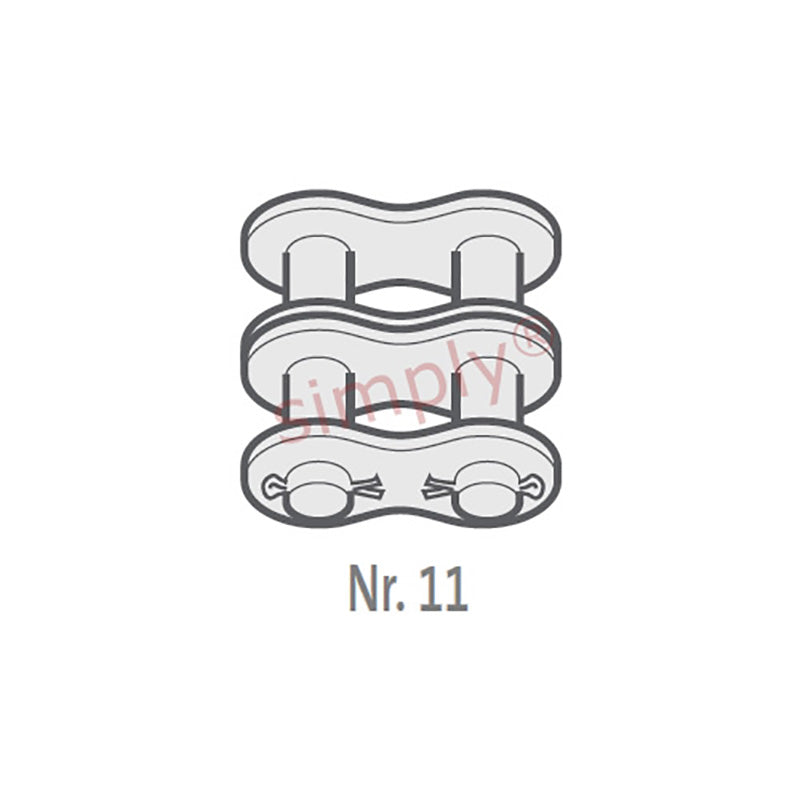

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 29.21mm |
| Plate Height max (D) | = | 42.29mm |
| Plate Width Inner max (E) | = | 7.11mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 17.81mm |
| Pin Length max (H1) | = | 122mm |
| Connecting Link Extension max (J) | = | 8mm |
| ISO606 Tensile Strength min | = | 450000 N |
| Weight | = | 0.34kg/m |
