SKU: 3212-2Z-EU

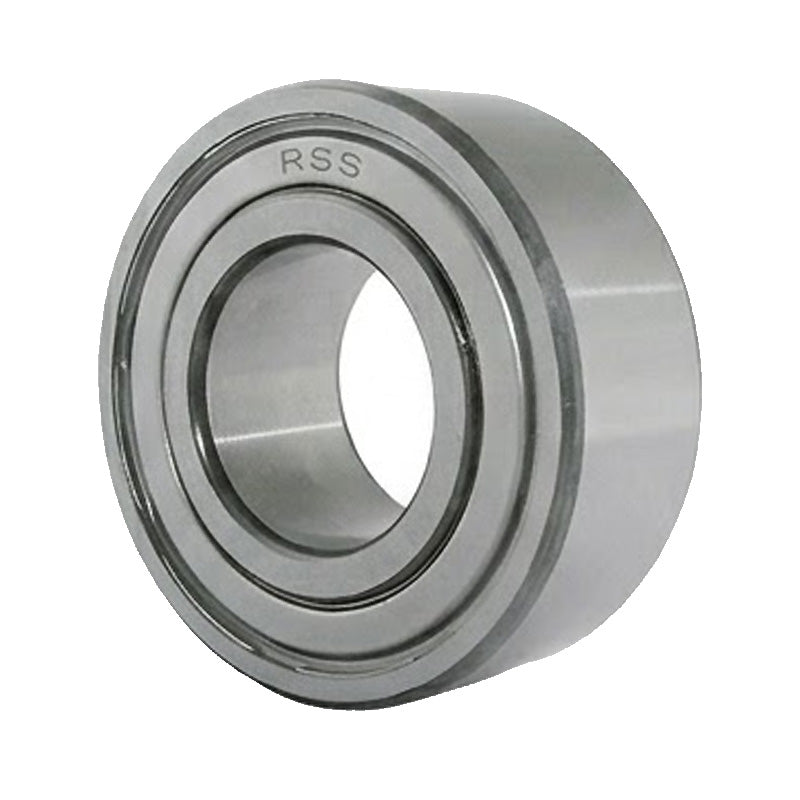

32122Z Budget Shielded Double Row Angular Contact Ball Bearing 60x110x36.5mm
- Regular price
- $128.66 ex VAT
- Sale price
- $128.66
- Regular price
-
In stock
Quantity Price Breaks
10
$114.51
19
$108.07
29
$106.79
39
$105.50
49
$104.21
74
$102.93
99
$96.50
199
$95.21
249
$93.92
499
$92.64
999
$90.06
SKU:
3212-2Z-EU
32122Z Budget Shielded Double Row Angular Contact Ball Bearing 60x110x36.5mm
- Regular price
- $128.66 ex VAT
- Sale price
- $128.66
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 60mm |
| D | = | 110mm |
| B | = | 36.5mm |
| Dynamic load C | = | 73.5 kN |
| Static load Co | = | 58.5 kN |
| Fatigue load limit Pu | = | 2.5 kN |
| Reference speed | = | 5600 rpm |
| Weight | = | 1.2 kg |
| d1 | = | 68.8mm |
| D1 | = | 101mm |
| r1r2 min | = | 1.5mm |
| a | = | 63mm |
| da min | = | 68.5mm |
| da max | = | 68.5mm |
| Da max | = | 101mm |
| ra max | = | 1.5mm |
