SKU: 3210-2Z-EU

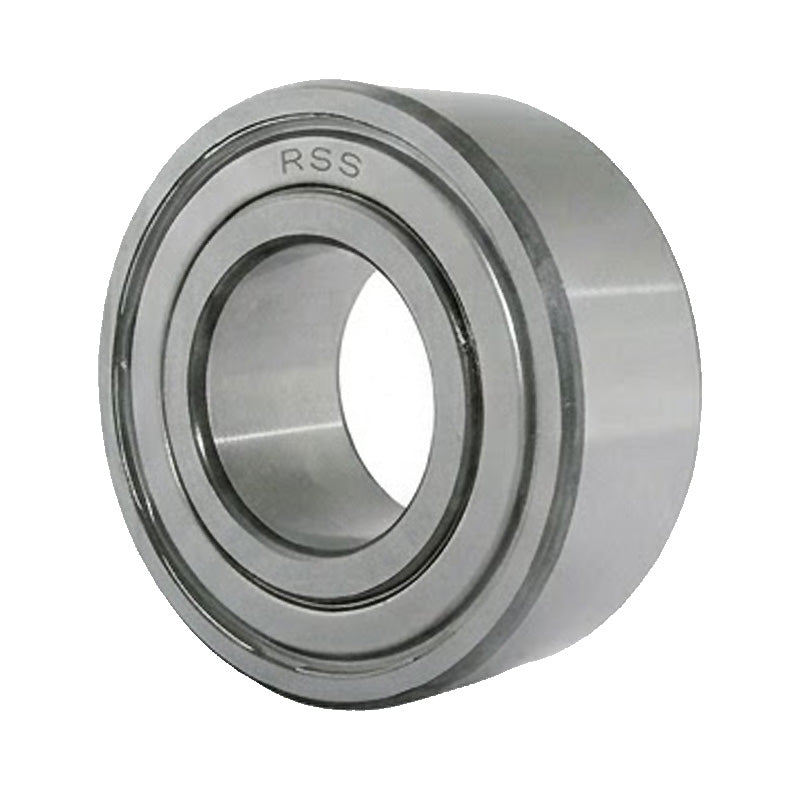

32102Z Budget Shielded Double Row Angular Contact Ball Bearing 50x90x30.2mm
- Regular price
- $77.03 ex VAT
- Sale price
- $77.03
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
$68.56
19
$64.71
29
$63.93
39
$63.16
49
$62.39
74
$61.62
99
$57.77
199
$57.00
249
$56.23
499
$55.46
999
$53.92
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 50mm |
| D | = | 90mm |
| B | = | 30.2mm |
| Dynamic load C | = | 51 kN |
| Static load Co | = | 39 kN |
| Fatigue load limit Pu | = | 1.66 kN |
| Reference speed | = | 7000 rpm |
| Weight | = | 0.65 kg |
| d1 | = | 57.8mm |
| D1 | = | 82.1mm |
| r1r2 min | = | 1.1mm |
| a | = | 52mm |
| da min | = | 57mm |
| da max | = | 57.5mm |
| Da max | = | 83mm |
| ra max | = | 1mm |
