SKU: 3208-2Z-EU

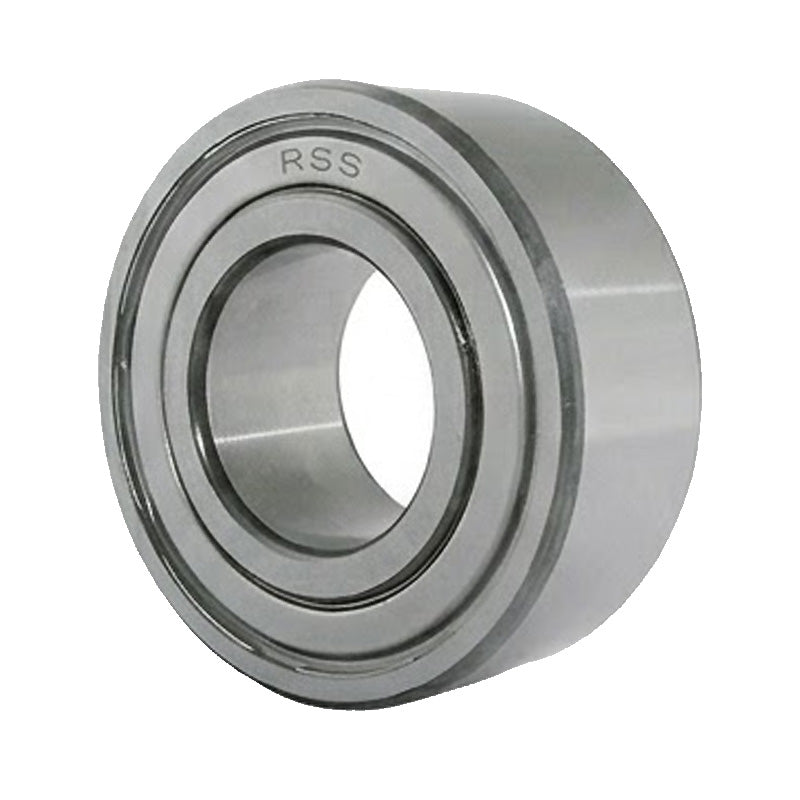

32082Z Budget Shielded Double Row Angular Contact Ball Bearing 40x80x30.2mm
- Regular price
- $59.19 ex VAT
- Sale price
- $59.19
- Regular price
-
In stock
Quantity Price Breaks
10
$52.68
19
$49.72
29
$49.13
39
$48.54
49
$47.94
74
$47.35
99
$44.39
199
$43.80
249
$43.21
499
$42.62
999
$41.43
SKU:
3208-2Z-EU
32082Z Budget Shielded Double Row Angular Contact Ball Bearing 40x80x30.2mm
- Regular price
- $59.19 ex VAT
- Sale price
- $59.19
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 40mm |
| D | = | 80mm |
| B | = | 30.2mm |
| Dynamic load C | = | 47.5 kN |
| Static load Co | = | 34 kN |
| Fatigue load limit Pu | = | 1.43 kN |
| Reference speed | = | 8000 rpm |
| Weight | = | 0.57 kg |
| d1 | = | 47.8mm |
| D1 | = | 72.1mm |
| r1r2 min | = | 1.1mm |
| a | = | 46mm |
| da min | = | 47mm |
| da max | = | 47mm |
| Da max | = | 73mm |
| ra max | = | 1mm |
