SKU: 3207-2Z-EU

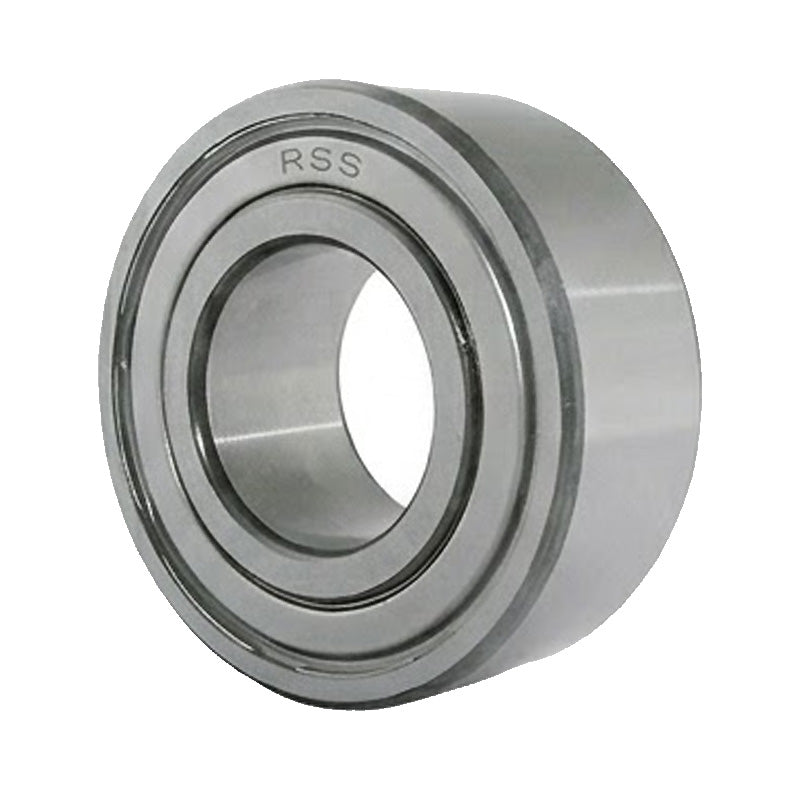

32072Z Budget Shielded Double Row Angular Contact Ball Bearing 35x72x27mm
- Regular price
- $48.33 ex VAT
- Sale price
- $48.33
- Regular price
-
In stock
Quantity Price Breaks
10
$43.01
19
$40.60
29
$40.11
39
$39.63
49
$39.15
74
$38.66
99
$36.25
199
$35.76
249
$35.28
499
$34.80
999
$33.83
SKU:
3207-2Z-EU
32072Z Budget Shielded Double Row Angular Contact Ball Bearing 35x72x27mm
- Regular price
- $48.33 ex VAT
- Sale price
- $48.33
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 35mm |
| D | = | 72mm |
| B | = | 27mm |
| Dynamic load C | = | 40 kN |
| Static load Co | = | 28 kN |
| Fatigue load limit Pu | = | 1.18 kN |
| Reference speed | = | 9000 rpm |
| Weight | = | 0.44 kg |
| d1 | = | 45.4mm |
| D1 | = | 63.9mm |
| r1r2 min | = | 1.1mm |
| a | = | 42mm |
| da min | = | 42mm |
| da max | = | 45mm |
| Da max | = | 65mm |
| ra max | = | 1mm |
