SKU: 3204-2RS-EU

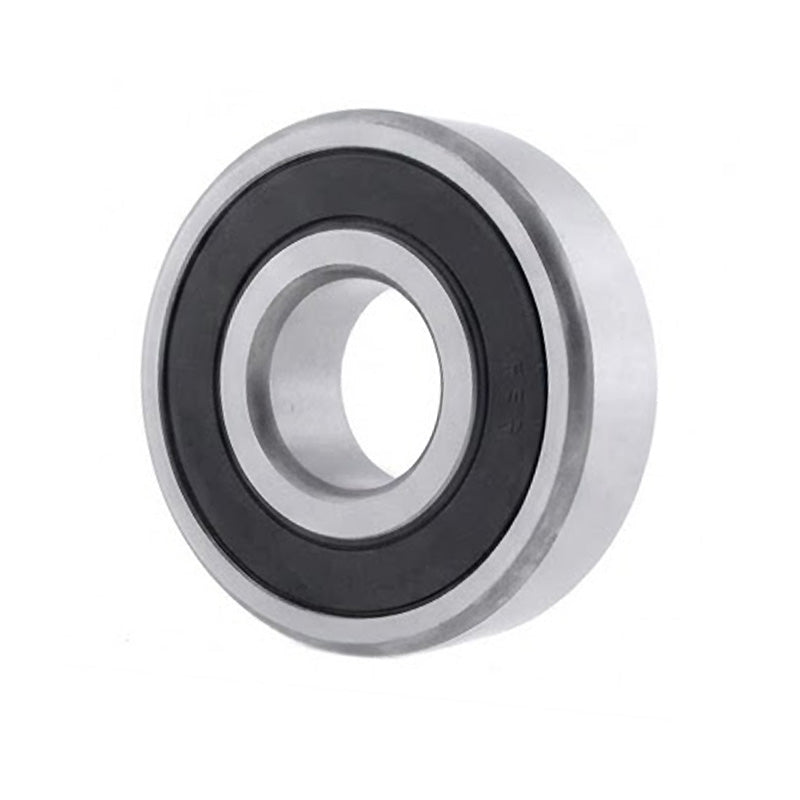

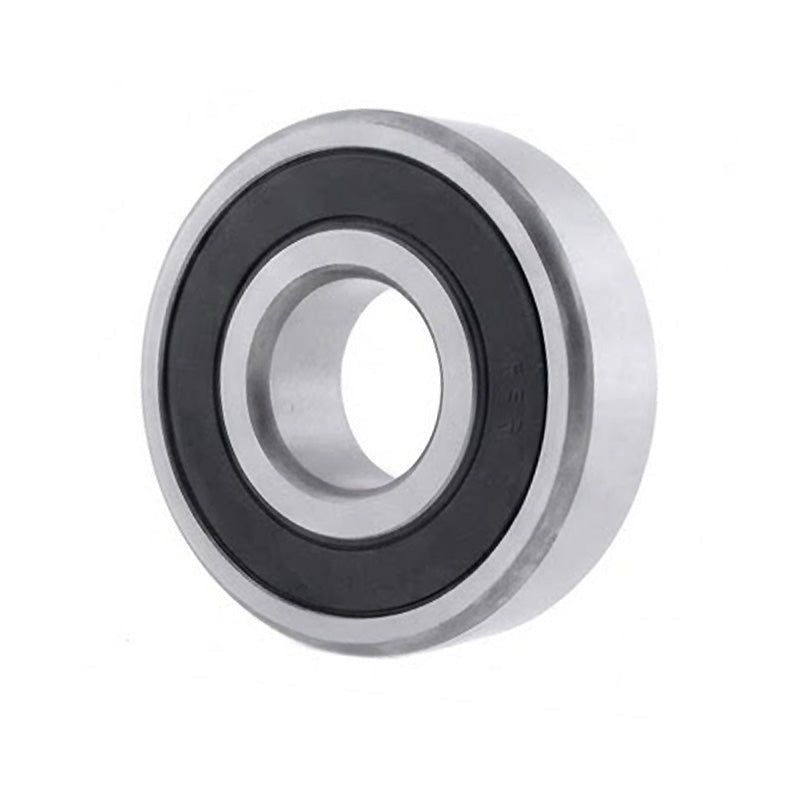

32042RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 20x47x20.6mm
- Regular price
- $32.46 ex VAT
- Sale price
- $32.46
- Regular price
-
In stock
Quantity Price Breaks
10
$28.89
19
$27.27
29
$26.94
39
$26.62
49
$26.29
74
$25.97
99
$24.35
199
$24.02
249
$23.70
499
$23.37
999
$22.72
SKU:
3204-2RS-EU
32042RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 20x47x20.6mm
- Regular price
- $32.46 ex VAT
- Sale price
- $32.46
- Regular price
-
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 20mm |
| D | = | 47mm |
| B | = | 20.6mm |
| Dynamic load C | = | 20 kN |
| Static load Co | = | 12 kN |
| Fatigue load limit Pu | = | 0.51 kN |
| Reference speed | = | 10000 rpm |
| Weight | = | 0.16 kg |
| d1 | = | 27.7mm |
| D1 | = | 40.9mm |
| r1r2 min | = | 1mm |
| a | = | 28mm |
| da min | = | 25.6mm |
| da max | = | 27.5mm |
| Da max | = | 41.4mm |
| ra max | = | 1mm |
