SKU: 305801.2RSR.MB

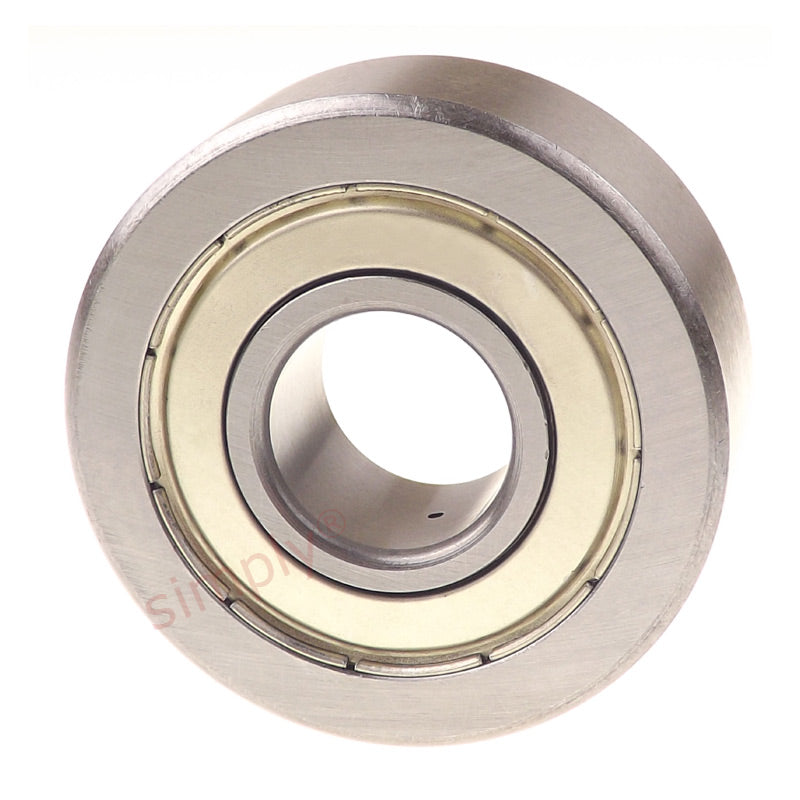

3058012RSR Double Row Rubber Sealed Cam Roller Cylindrical Outer 12x35x15.9mm
- Regular price
- $119.24 ex VAT
- Sale price
- $119.24
- Regular price
-
In stock
Quantity Price Breaks
10
$106.12
19
$100.16
29
$98.97
39
$97.78
49
$96.58
74
$95.39
99
$89.43
199
$88.24
249
$87.05
499
$85.85
999
$83.47
SKU:
305801.2RSR.MB
3058012RSR Double Row Rubber Sealed Cam Roller Cylindrical Outer 12x35x15.9mm
- Regular price
- $119.24 ex VAT
- Sale price
- $119.24
- Regular price
-
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. Benefits: Tolerate high loads, shock loads, misalignment when running in tracks |
Technical
| Bore | = | 12mm |
| Outside Diameter | = | 35mm |
| Width | = | 15.9mm |
| Max rad R | = | 400mm |
| r1r2 | = | 0.6mm |
| Limiting speed | = | 7300 rpm |
| Dynamic load as cam roller | = | 10.6 kN |
| Static load as cam roller | = | 5.9 kN |
| Dynamic load as bearing | = | 10 kN |
| Static load as bearing | = | 5.2 kN |
| Max radial load | = | 8.3 kN |
| Max static load | = | 12 kN |
| Weight | = | 78 kg |
