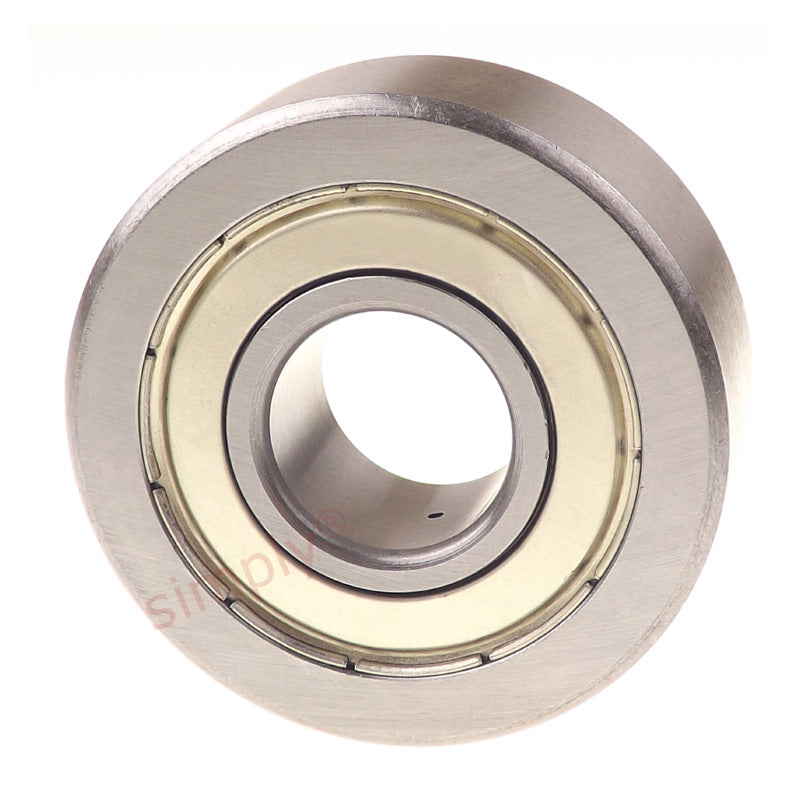

3057002Z Double Row Metal Shielded Cam Roller Cylindrical Outer 10x32x14mm

SKU: 305700.2Z.MB

3057002Z Double Row Metal Shielded Cam Roller Cylindrical Outer 10x32x14mm

$108.93 ex VAT
$108.93
ex VAT
Not in stock

Quantity Price Breaks

10 $96.95
19 $91.50
29 $90.41
39 $89.32
49 $88.23
74 $87.14
99 $81.70
199 $80.61
249 $79.52
499 $78.43
999 $76.25
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
3057002Z Double Row Metal Shielded Cam Roller Cylindrical Outer 10x32x14mm
SKU: 305700.2Z.MB

3057002Z Double Row Metal Shielded Cam Roller Cylindrical Outer 10x32x14mm

$108.93 ex VAT
$108.93
ex VAT

Description

Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for.
Benefits: Tolerate high loads, shock loads, misalignment when running in tracks

Technical

Bore = 10mm
Outside Diameter = 32mm
Width = 14mm
Max rad R = 400mm
r1r2 = 0.6mm
Limiting speed = 13000 rpm
Dynamic load as cam roller = 7.8 kN
Static load as cam roller = 4.5 kN
Dynamic load as bearing = 7.4 kN
Static load as bearing = 4.1 kN
Max radial load = 9 kN
Max static load = 12.9 kN
Weight = 0.062 kg
