Renold SD 28B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
- Regular price
- $191.85 ex VAT
- Sale price
- $191.85
- Regular price
-
Description

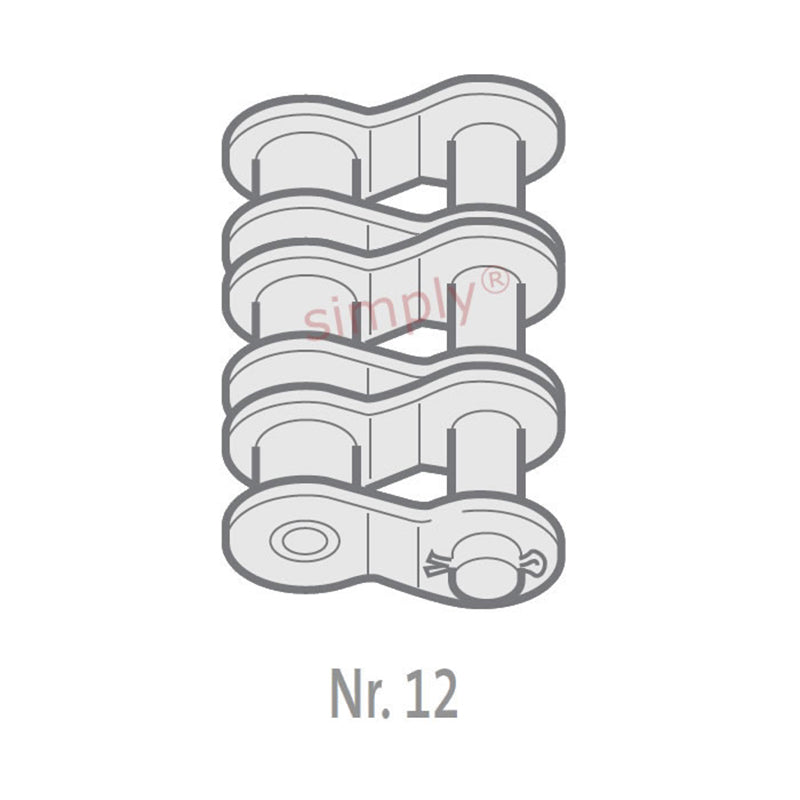

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 27.94mm |
| Plate Height max (D) | = | 36.9mm |
| Plate Width Inner max (E) | = | 7.4mm |
| Plate Width Outer max (F) | = | 6.4mm |
| Pin Diameter max (G) | = | 15.9mm |
| Pin Length max (H1) | = | 175.6mm |
| Connecting Link Extension max (J) | = | 14.1mm |
| ISO606 Tensile Strength min | = | 580000 N |
| Weight | = | 0.4kg/m |
