SKU: 28B-2-SD-NO11-RENOLD
Renold SD 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- $76.25 ex VAT
- Sale price
- $76.25
- Regular price
-
Not in stock
Quantity Price Breaks
2
$67.86
5
$64.05
10
$63.29
29
$62.53
49
$61.76
75
$61.00
100
$57.19
200
$56.43
250
$55.66
500
$54.90
1000
$53.38
SKU:
28B-2-SD-NO11-RENOLD
Renold SD 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- $76.25 ex VAT
- Sale price
- $76.25
- Regular price
-
Description

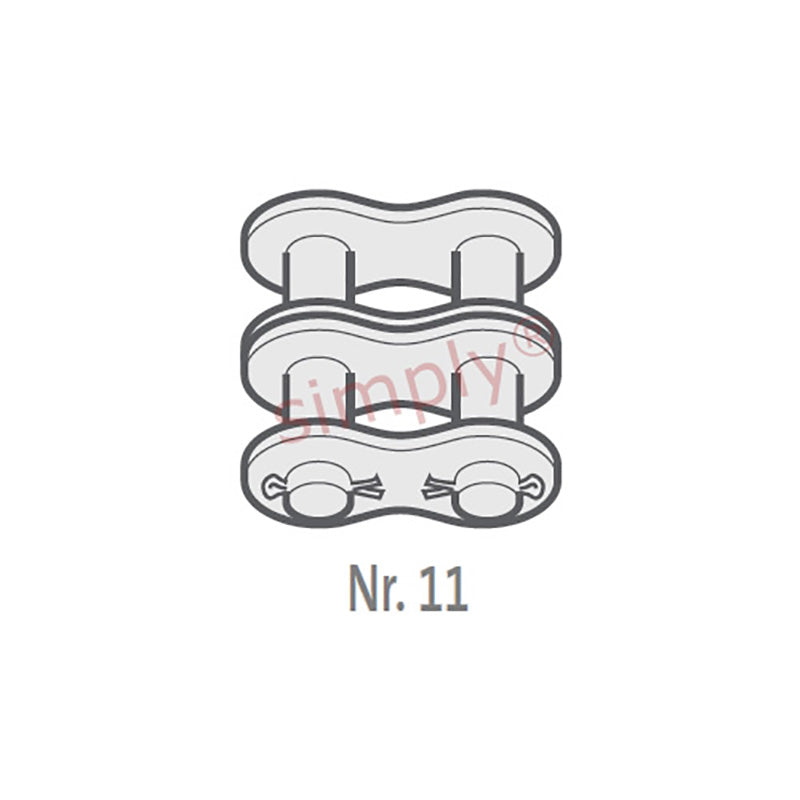

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 27.94mm |
| Plate Height max (D) | = | 36.9mm |
| Plate Width Inner max (E) | = | 7.4mm |
| Plate Width Outer max (F) | = | 6.4mm |
| Pin Diameter max (G) | = | 15.9mm |
| Pin Length max (H2) | = | 124.1mm |
| Connecting Link Extension max (J) | = | 5mm |
| Transverse Pitch nom (K) | = | 59.56mm |
| ISO606 Tensile Strength min | = | 360000 N |
| Weight | = | 0.27kg/m |
