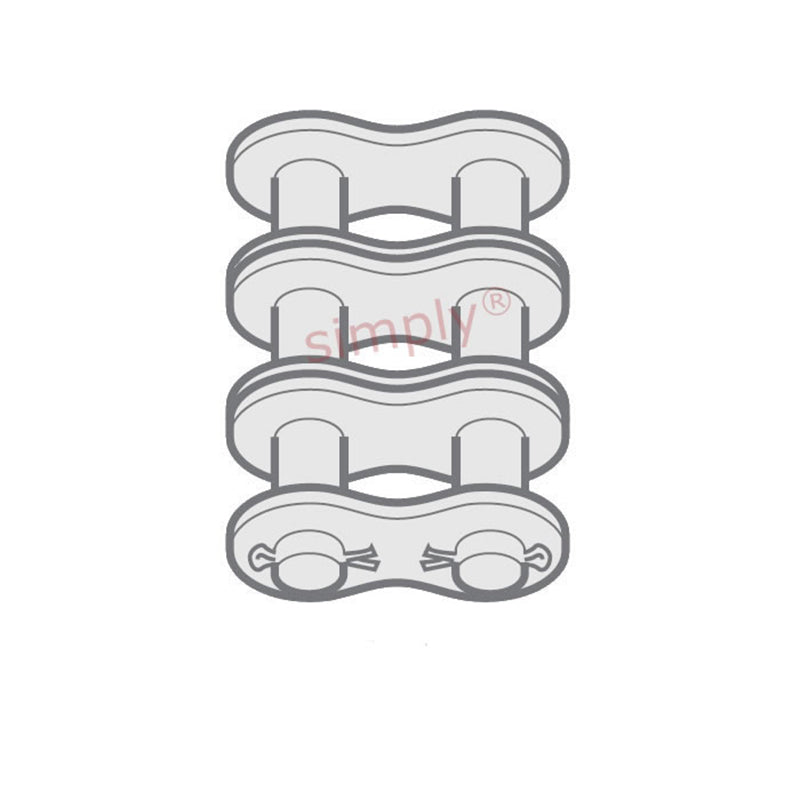

Renold Blue Box 24B-3-NO58 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- $200.84 ex VAT
- Sale price
- $200.84
- Regular price
-
Not in stock
Quantity Price Breaks
2
$178.75
5
$168.71
10
$166.70
29
$164.69
49
$162.68
75
$160.67
100
$150.63
200
$148.62
250
$146.61
500
$144.60
1000
$140.59
SKU:
24B-3-BB-NO58-RENOLD
Renold Blue Box 24B-3-NO58 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- $200.84 ex VAT
- Sale price
- $200.84
- Regular price
-
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.4mm |
| Plate Width Inner max (E) | = | 6.1mm |
| Plate Width Outer max (F) | = | 5.08mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H2) | = | 149.7mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| Transverse Pitch nom (K) | = | 48.36mm |
| ISO606 Tensile Strength min | = | 425000 N |
| Weight | = | 0.19kg/m |
