SKU: 24B-2-BB-NO12-RENOLD
Renold Blue Box 24B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
- Regular price
- $261.41 ex VAT
- Sale price
- $261.41
- Regular price
-
Not in stock
Quantity Price Breaks
2
$232.65
5
$219.58
10
$216.97
29
$214.36
49
$211.74
75
$209.13
100
$196.06
200
$193.44
250
$190.83
500
$188.22
1000
$182.99
SKU:
24B-2-BB-NO12-RENOLD
Renold Blue Box 24B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
- Regular price
- $261.41 ex VAT
- Sale price
- $261.41
- Regular price
-
Description

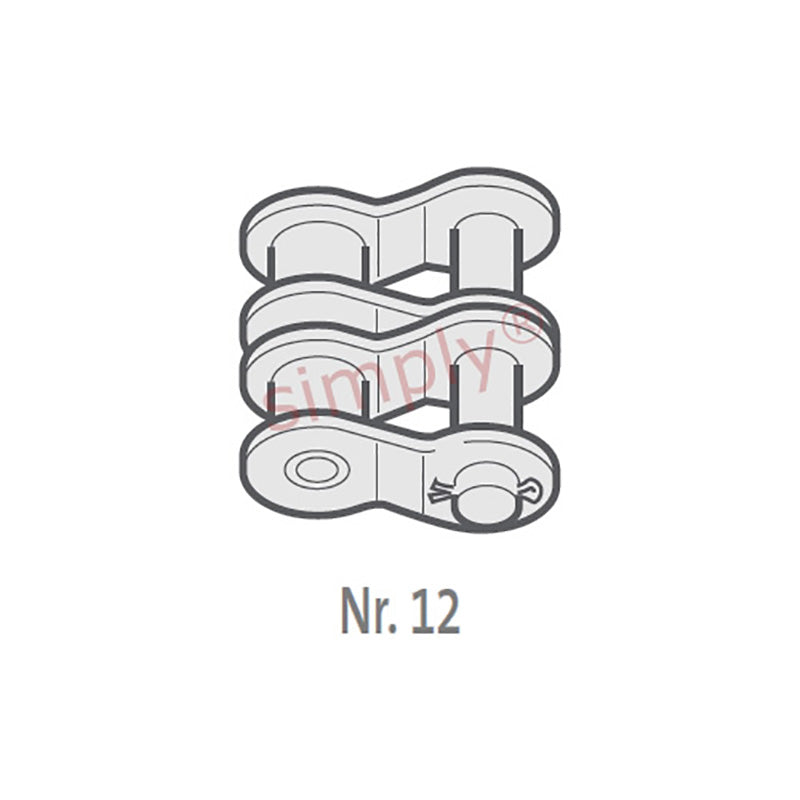

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.4mm |
| Plate Width Inner max (E) | = | 6.1mm |
| Plate Width Outer max (F) | = | 5.08mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H1) | = | 101.3mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| ISO606 Tensile Strength min | = | 280000 N |
| Weight | = | 0.19kg/m |
