SKU: 24B-1-BB-NO12-RENOLD
Renold Blue Box 24B-1-NO12 BS Simplex Single Cranked Cottered Link 1-1/2 inch Pitch
- Regular price
- $136.76 ex VAT
- Sale price
- $136.76
- Regular price
-
Not in stock
Quantity Price Breaks
2
$121.72
5
$114.88
10
$113.51
29
$112.14
49
$110.78
75
$109.41
100
$102.57
200
$101.20
250
$99.83
500
$98.47
1000
$95.73
SKU:
24B-1-BB-NO12-RENOLD
Renold Blue Box 24B-1-NO12 BS Simplex Single Cranked Cottered Link 1-1/2 inch Pitch
- Regular price
- $136.76 ex VAT
- Sale price
- $136.76
- Regular price
-
Description

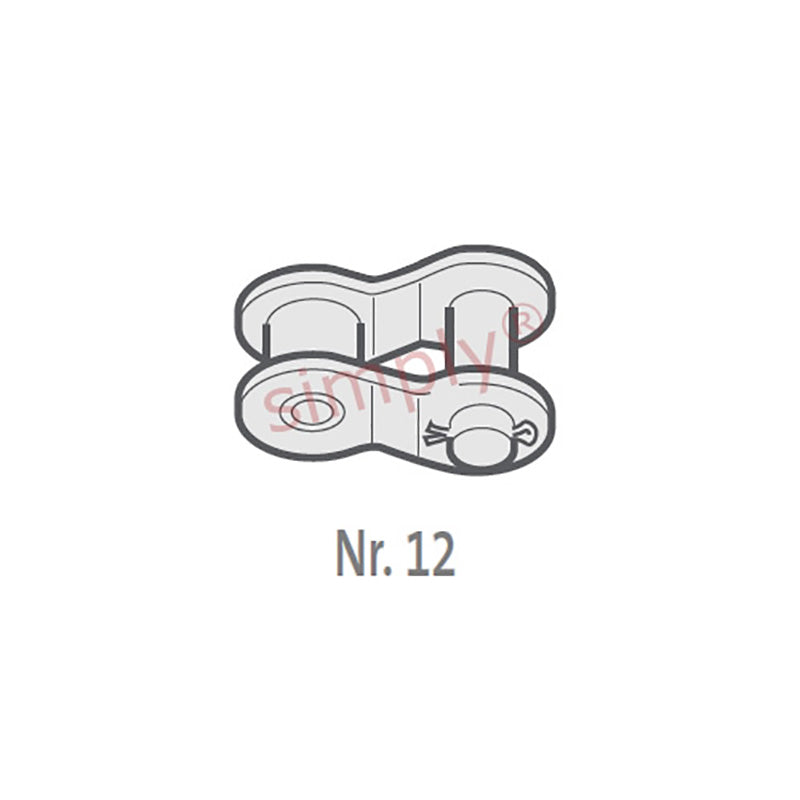

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.4mm |
| Plate Width Inner max (E) | = | 6.1mm |
| Plate Width Outer max (F) | = | 5.08mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H1) | = | 52.6mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.09kg/m |
