SKU: 21311-E1-Ku?FAG
FAG 21311E1K X-life Spherical Roller Bearing with AHX311 Withdrawal Sleeve 50x120x29mm
- Regular price
- $271.72 ex VAT
- Sale price
- $271.72
- Regular price
-
Not in stock
Quantity Price Breaks
3
$241.83
4
$228.24
9
$225.53
19
$222.81
29
$220.09
39
$217.38
49
$203.79
59
$201.07
249
$198.36
499
$195.64
999
$190.20
SKU:
21311-E1-Ku?FAG
FAG 21311E1K X-life Spherical Roller Bearing with AHX311 Withdrawal Sleeve 50x120x29mm
- Regular price
- $271.72 ex VAT
- Sale price
- $271.72
- Regular price
-
Description
SPHERWITHD_DESC

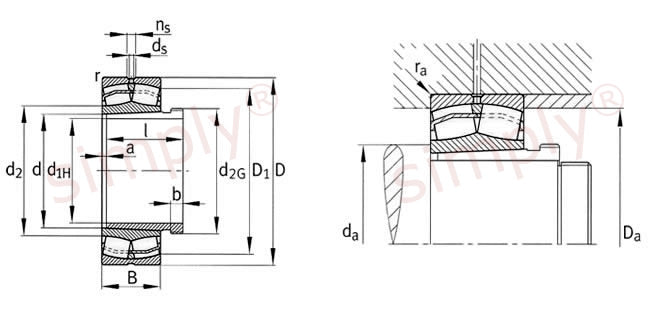

Technical
| d1H | = | 50mm |
| d | = | 55mm |
| D | = | 120mm |
| B | = | 29mm |
| r min | = | 2mm |
| D1 | = | 98.3mm |
| d2 | = | 71.4mm |
| ds | = | 3.2mm |
| ns | = | 6.5mm |
| a | = | 3mm |
| b | = | 7mm |
| Thread d2G | = | M60X2 |
| l | = | 37mm |
| da min | = | 66mm |
| Da max | = | 109mm |
| ra max | = | 2mm |
| Dynamic load Cr | = | 160000 N |
| Static load C0r | = | 155000 N |
| e | = | 0.24 |
| Y1 | = | 2.84 |
| Y2 | = | 4.23 |
| Y0 | = | 2.78 |
| Fatigue load limit Cur | = | 20200 N |
| Limiting speed nG | = | 6300 rpm |
| Reference speed nB | = | 5100 rpm |
| Bearing weight | = | 1.19 kg |
| Withdrawal sleeve weight | = | 0.164 kg |
