SKU: 20B-3-SYN-NO58-RENOLD

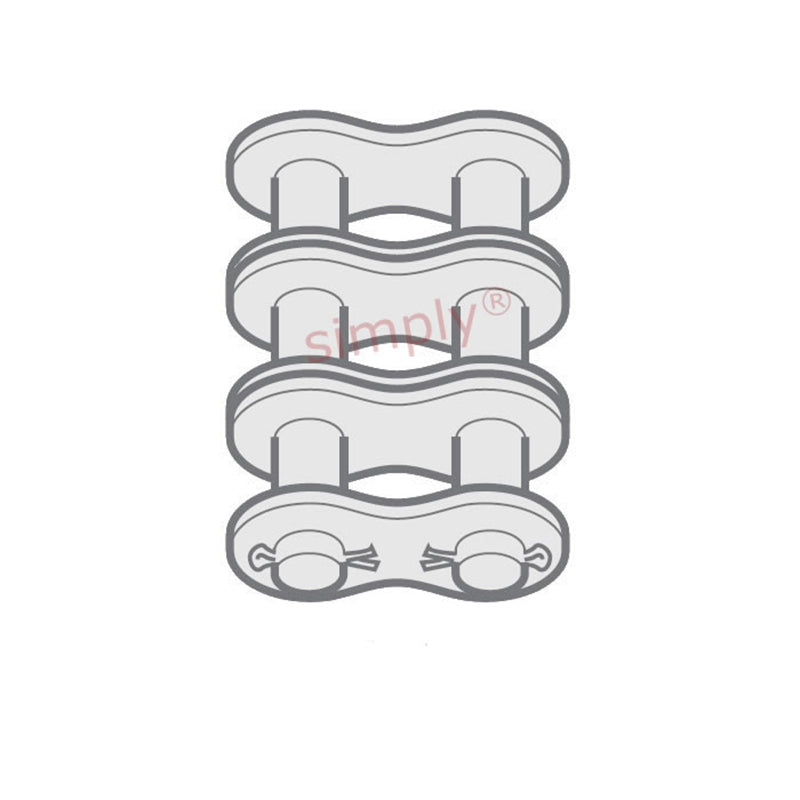

Renold Synergy 20B-3-NO58 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- $227.23 ex VAT
- Sale price
- $227.23
- Regular price
-
Not in stock
Quantity Price Breaks
2
$202.23
5
$190.87
10
$188.60
29
$186.33
49
$184.06
75
$181.78
100
$170.42
200
$168.15
250
$165.88
500
$163.61
1000
$159.06
SKU:
20B-3-SYN-NO58-RENOLD
Renold Synergy 20B-3-NO58 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- $227.23 ex VAT
- Sale price
- $227.23
- Regular price
-
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.42mm |
| Plate Width Inner max (E) | = | 4.62mm |
| Plate Width Outer max (F) | = | 3.61mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H2) | = | 113.2mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 36.45mm |
| ISO606 Tensile Strength min | = | 250000 N |
| Weight | = | 0.08kg/m |
