SKU: 20B-3-SD-NO12-RENOLD
Renold SD 20B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
- Regular price
- $71.47 ex VAT
- Sale price
- $71.47
- Regular price
-
Not in stock
Quantity Price Breaks
2
$63.61
5
$60.03
10
$59.32
29
$58.61
49
$57.89
75
$57.18
100
$53.60
200
$52.89
250
$52.17
500
$51.46
1000
$50.03
SKU:
20B-3-SD-NO12-RENOLD
Renold SD 20B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
- Regular price
- $71.47 ex VAT
- Sale price
- $71.47
- Regular price
-
Description

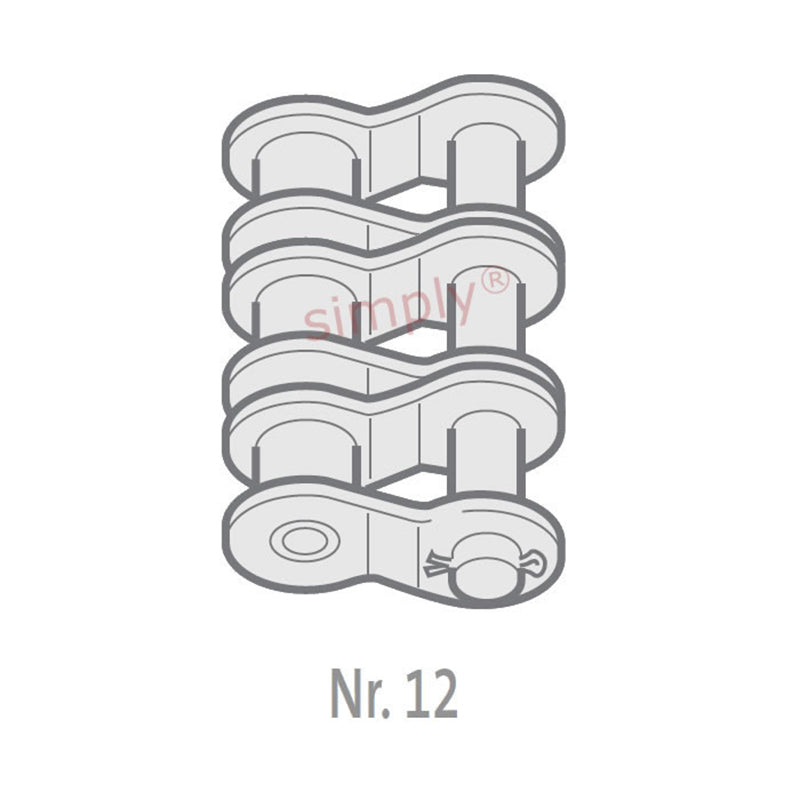

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.3mm |
| Plate Width Inner max (E) | = | 4.5mm |
| Plate Width Outer max (F) | = | 3.5mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H1) | = | 108.9mm |
| Connecting Link Extension max (J) | = | 10.8mm |
| ISO606 Tensile Strength min | = | 275000 N |
| Weight | = | 0.121kg/m |
