SKU: 20313-K-MB-C3+H313-MB

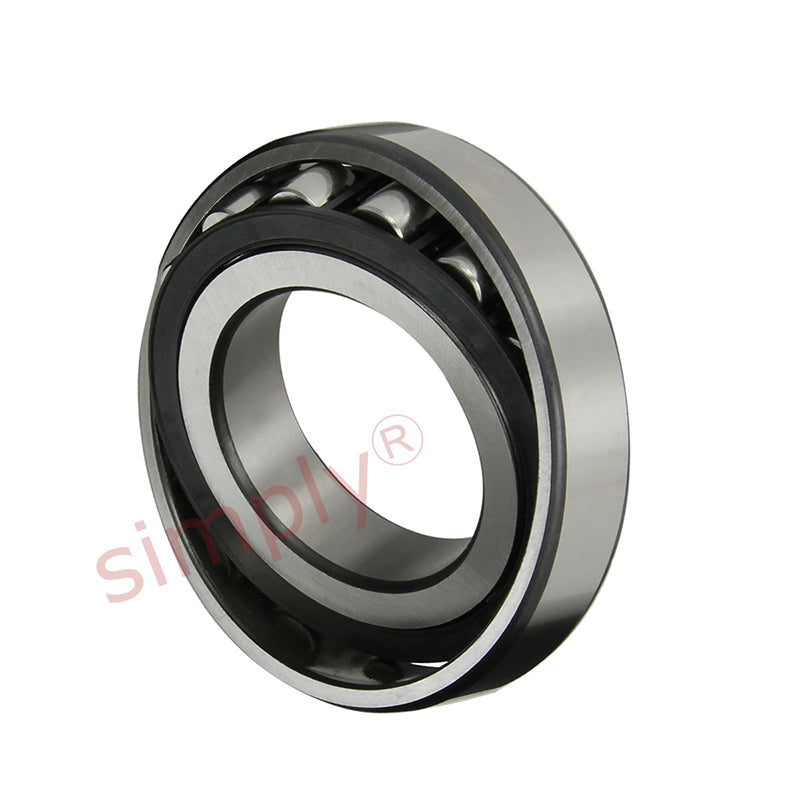

20313KMBC3 Barrel Roller Bearing with Taper Bore and H313 Adaptor Sleeve 60x140x33mm - Allow 2-3 Days
- Regular price
- $598.52 ex VAT
- Sale price
- $598.52
- Regular price
-
Not in stock
No price breaks available for this product.
SKU:
20313-K-MB-C3+H313-MB
20313KMBC3 Barrel Roller Bearing with Taper Bore and H313 Adaptor Sleeve 60x140x33mm - Allow 2-3 Days
- Regular price
- $598.52 ex VAT
- Sale price
- $598.52
- Regular price
-
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid brass cage. This bearing is also available with an adaptor sleeve for locating purposes. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C. to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
Technical
| d1H | = | 60mm |
| D | = | 140mm |
| B | = | 33mm |
| Ba min | = | 5mm |
| c | = | 14mm |
| D1 | = | 120.6mm |
| Da max | = | 128mm |
| Dm | = | 85mm |
| d | = | 65mm |
| da max | = | 84mm |
| db min | = | 70mm |
| l | = | 50mm |
| ra max | = | 2.1mm |
| r min | = | 1.5mm |
| Adaptor sleeve | = | H313 |
| Dynamic radial load Cr | = | 170000 N |
| Static radial load C0r | = | 196000 N |
| Limiting speed nG | = | 2800 rpm |
| Fatigue limit radial load Cur | = | 17900 N |
| Weight | = | 2.6 kg |
