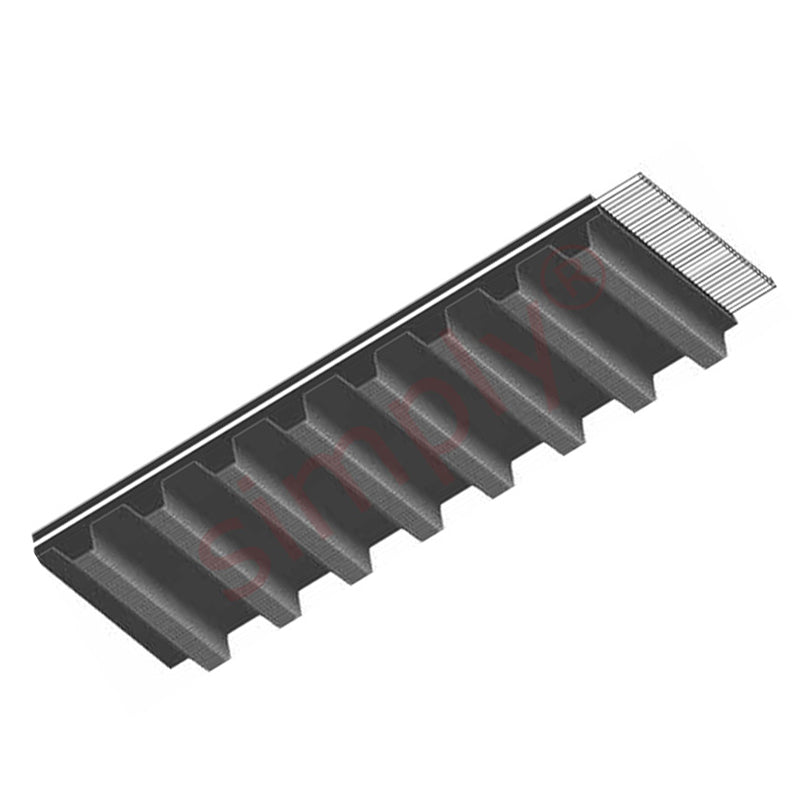

16T2.5/330 ContiTech Synchroflex Toothed Belt 16mm Wide 2.5mm Pitch 132 Teeth
SKU: 16T2.5/330

16T2.5/330 ContiTech Synchroflex Toothed Belt 16mm Wide 2.5mm Pitch 132 Teeth

$38.94 ex VAT
$38.94
ex VAT

Description

Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.

Technical

No Teeth = 132
Width = 16mm
Tooth Pitch t = 2.5mm
Belt Length = 330mm
Belt Thickness h< = sub>
s< = /sub>
= 1.3mm
Tooth Height h< = sub>
t< = /sub>
= 0.7mm
Flank Angle = 40 deg
Tension member loadings = 195 Fadm(N)
Belt weight = 0.024kg/m
