SKU: 16B-3-SD-NO26-RENOLD
Renold SD 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $27.31 ex VAT
- Sale price
- $27.31
- Regular price
-
In stock
Quantity Price Breaks
2
$24.31
5
$22.94
10
$22.67
29
$22.39
49
$22.12
75
$21.85
100
$20.48
200
$20.21
250
$19.94
500
$19.66
1000
$19.12
SKU:
16B-3-SD-NO26-RENOLD
Renold SD 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $27.31 ex VAT
- Sale price
- $27.31
- Regular price
-
Description

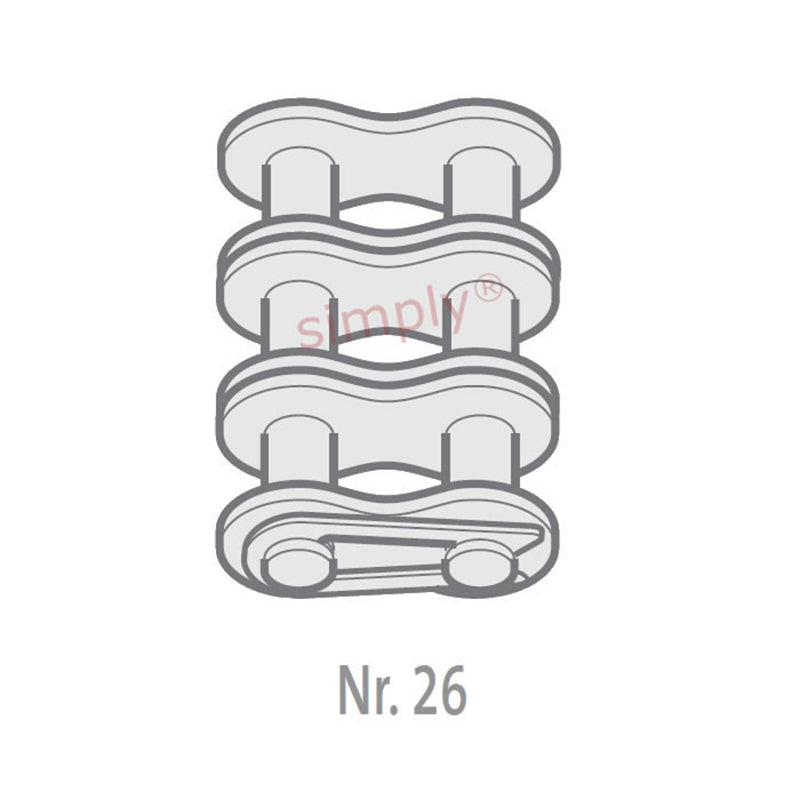

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 103.2mm |
| Connecting Link Extension max (J) | = | 3.60000000000001mm |
| ISO606 Tensile Strength min | = | 173000 N |
| Weight | = | 0.113kg/m |
