SKU: 16B-3-SD-NO12-RENOLD
Renold SD 16B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- $51.92 ex VAT
- Sale price
- $51.92
- Regular price
-
Not in stock
Quantity Price Breaks
2
$46.21
5
$43.61
10
$43.09
29
$42.57
49
$42.06
75
$41.54
100
$38.94
200
$38.42
250
$37.90
500
$37.38
1000
$36.34
SKU:
16B-3-SD-NO12-RENOLD
Renold SD 16B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- $51.92 ex VAT
- Sale price
- $51.92
- Regular price
-
Description

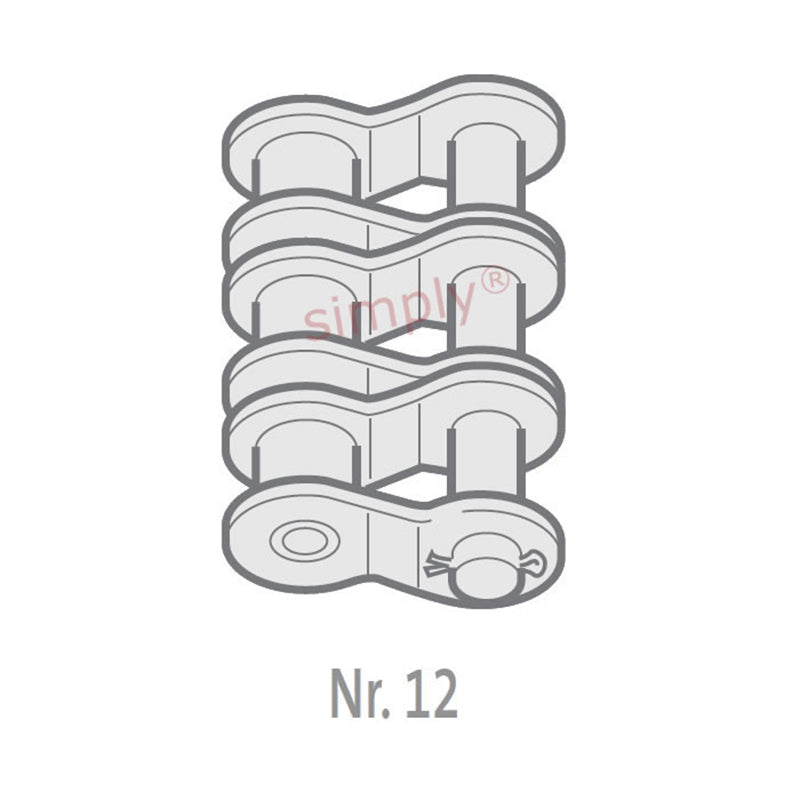

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 103.2mm |
| Connecting Link Extension max (J) | = | 3.60000000000001mm |
| ISO606 Tensile Strength min | = | 173000 N |
| Weight | = | 0.063kg/m |
