SKU: 16100-2Z-FAG

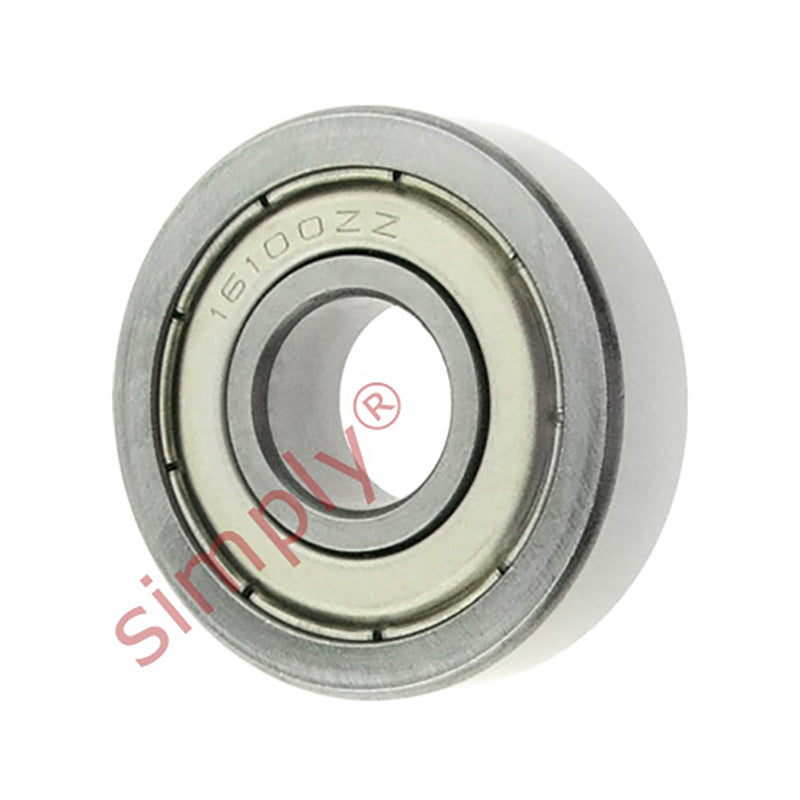

FAG 161002Z Metal Shielded Deep Groove Ball Bearing 10x28x8mm
Equivalent to: 16100ZZE 16100ZZ 16100.2Z 16100KDD 16100DD 16100FF 161002ZR
In stock
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 10mm |
|---|---|
| D | 28mm |
| B | 8mm |
| Dynamic load C | 4.62 kN |
| Static load Co | 1.96 kN |
| Fatigue load limit Pu | 0.083 kN |
| Reference speed | 63000 rpm |
| Limiting speed | 32000 rpm |
| Mass | 0.022 kg |
| d1 | 17mm |
| D2 | 24.8mm |
| r1r2 min | 0.6mm |
| da min | 14.2 |
