SKU: 160-3-NO12-MB
Branded 160-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- $133.87 ex VAT
- Sale price
- $133.87
- Regular price
-
Not in stock
Quantity Price Breaks
2
$119.14
5
$112.45
10
$111.11
29
$109.77
49
$108.43
75
$107.10
100
$100.40
200
$99.06
250
$97.73
500
$96.39
1000
$93.71
SKU:
160-3-NO12-MB
Branded 160-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- $133.87 ex VAT
- Sale price
- $133.87
- Regular price
-
Description

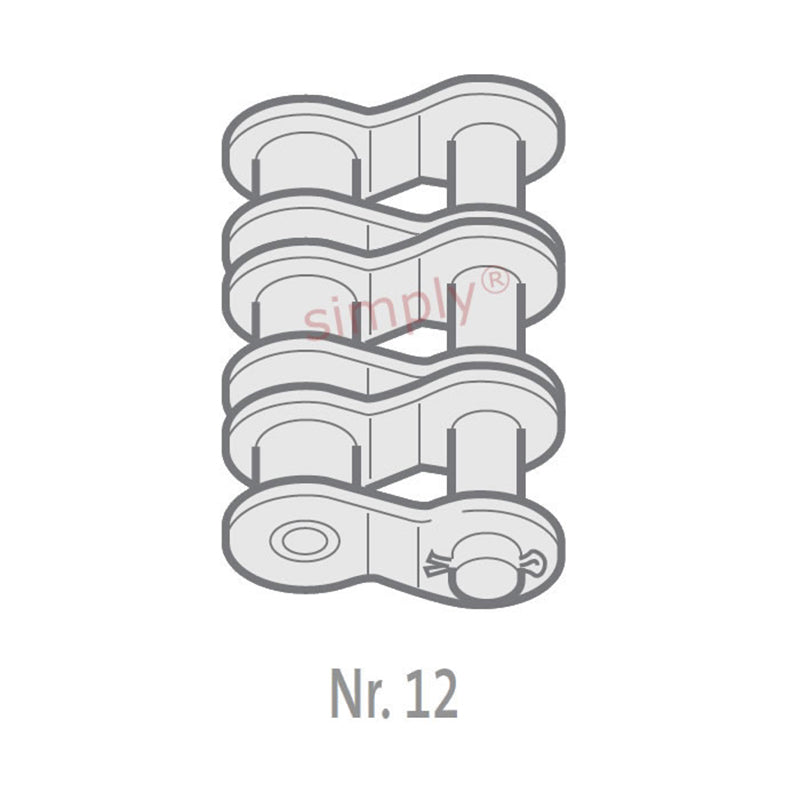

Branded OL / No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 31.55mm |
| Roller Diameter max (C) | = | 28.58mm |
| Plate Height max (D) | = | 48mm |
| Plate Width Inner max (E) | = | 6.4mm |
| Plate Width Outer max (F) | = | 6.4mm |
| Pin Diameter max (G) | = | 14.2mm |
| Pin Length max (H1) | = | 170.5mm |
| Connecting Link Extension max (J) | = | 16.8mm |
| ISO606 Tensile Strength min | = | 669000 N |
| Weight | = | 58.55kg/m |
