SKU: 160-2-SYNERGY-10FT-RENOLD

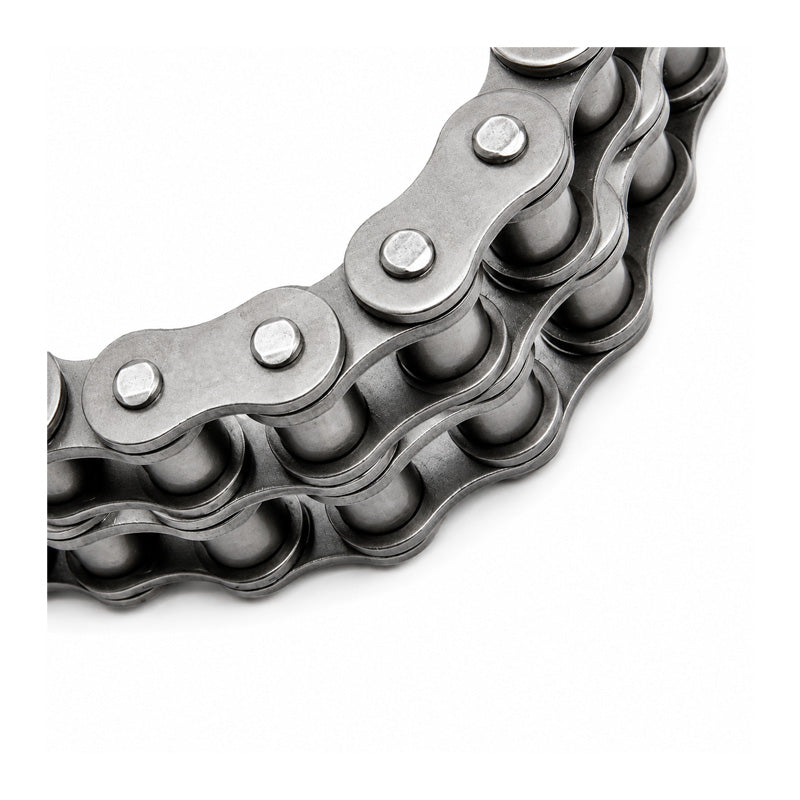

Renold Synergy 160-2 ANSI / AS Duplex Roller Chain 2 inch Pitch - 10 Feet Length
- Regular price
- $11,045.93 ex VAT
- Sale price
- $11,045.93
- Regular price
-
In stock
Quantity Price Breaks
10+
$9,830.88
19+
$9,278.58
29+
$9,168.12
39+
$9,057.66
49+
$8,947.20
74+
$8,836.74
99+
$8,284.45
199+
$8,173.99
249+
$8,063.53
499+
$7,953.07
999+
$7,732.15
SKU:
160-2-SYNERGY-10FT-RENOLD
Renold Synergy 160-2 ANSI / AS Duplex Roller Chain 2 inch Pitch - 10 Feet Length
- Regular price
- $11,045.93 ex VAT
- Sale price
- $11,045.93
- Regular price
-
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 31.55mm |
| Roller Diameter max (C) | = | 28.58mm |
| Plate Height max (D) | = | 48.26mm |
| Plate Width Inner max (E) | = | 6.35mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 14.29mm |
| Pin Length max (H2) | = | 121.6mm |
| Connecting Link Extension max (J) | = | 6.5mm |
| Transverse Pitch nom (K) | = | 58.55mm |
| ISO606 Tensile Strength min | = | 446000 N |
| Weight | = | 20.6kg/m |
