SKU: 140-2-SYNERGY-10FT-RENOLD

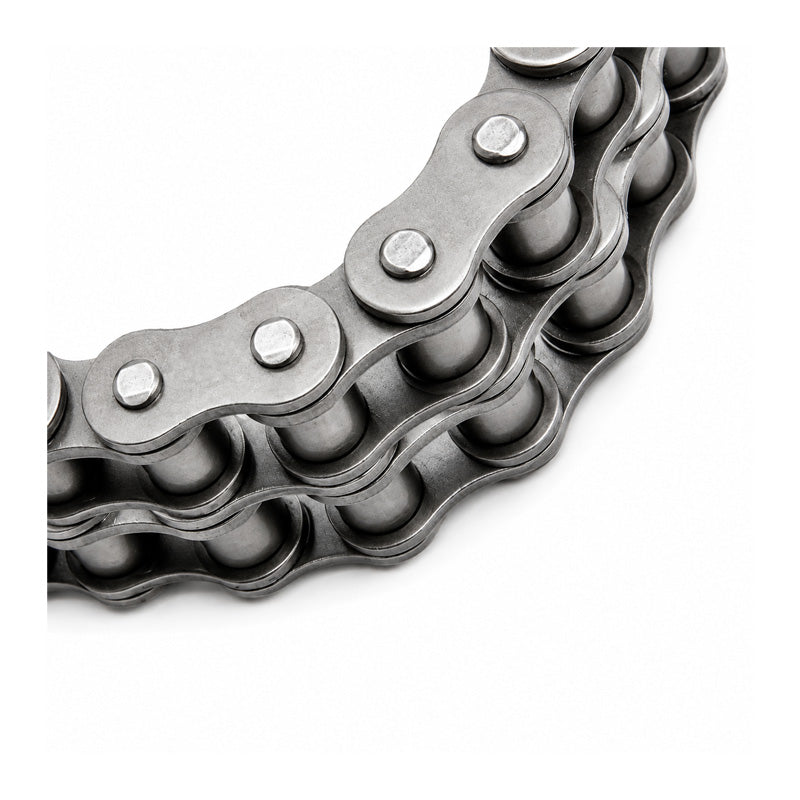

Renold Synergy 140-2 ANSI / AS Duplex Roller Chain 1-3/4 inch Pitch - 10 Feet Length
- Regular price
- $10,335.81 ex VAT
- Sale price
- $10,335.81
- Regular price
-
In stock
Quantity Price Breaks
10+
$9,198.87
19+
$8,682.08
29+
$8,578.72
39+
$8,475.36
49+
$8,372.01
74+
$8,268.65
99+
$7,751.86
199+
$7,648.50
249+
$7,545.14
499+
$7,441.78
999+
$7,235.07
SKU:
140-2-SYNERGY-10FT-RENOLD
Renold Synergy 140-2 ANSI / AS Duplex Roller Chain 1-3/4 inch Pitch - 10 Feet Length
- Regular price
- $10,335.81 ex VAT
- Sale price
- $10,335.81
- Regular price
-
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 25.23mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 42.23mm |
| Plate Width Inner max (E) | = | 5.61mm |
| Plate Width Outer max (F) | = | 5.61mm |
| Pin Diameter max (G) | = | 12.71mm |
| Pin Length max (H2) | = | 101.8mm |
| Connecting Link Extension max (J) | = | 5.2mm |
| Transverse Pitch nom (K) | = | 48.87mm |
| ISO606 Tensile Strength min | = | 340000 N |
| Weight | = | 15.5kg/m |
