SKU: 120-3-SYN-NO12-RENOLD
Renold Synergy 120-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
- Regular price
- $1,330.34 ex VAT
- Sale price
- $1,330.34
- Regular price
-
Not in stock
Quantity Price Breaks
2
$1,184.00
5
$1,117.49
10
$1,104.18
29
$1,090.88
49
$1,077.58
75
$1,064.27
100
$997.76
200
$984.45
250
$971.15
500
$957.84
1000
$931.24
SKU:
120-3-SYN-NO12-RENOLD
Renold Synergy 120-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
- Regular price
- $1,330.34 ex VAT
- Sale price
- $1,330.34
- Regular price
-
Description

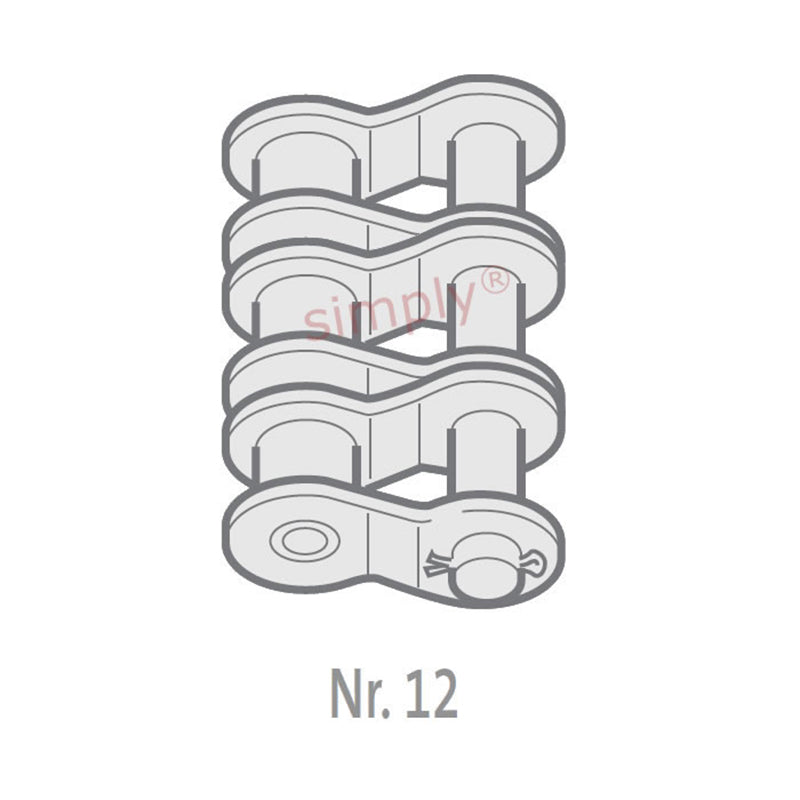

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.23mm |
| Roller Diameter max (C) | = | 22.23mm |
| Plate Height max (D) | = | 36.2mm |
| Plate Width Inner max (E) | = | 4.8mm |
| Plate Width Outer max (F) | = | 4.8mm |
| Pin Diameter max (G) | = | 11.11mm |
| Pin Length max (H2) | = | 140.2mm |
| Connecting Link Extension max (J) | = | 5.3mm |
| Transverse Pitch nom (K) | = | 45.44mm |
| ISO606 Tensile Strength min | = | 375000 N |
| Weight | = | 0.15kg/m |
