SKU: 120-3-SYN-NO11-RENOLD
Renold Synergy 120-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- $645.88 ex VAT
- Sale price
- $645.88
- Regular price
-
Not in stock
Quantity Price Breaks
2
$574.83
5
$542.54
10
$536.08
29
$529.62
49
$523.16
75
$516.70
100
$484.41
200
$477.95
250
$471.49
500
$465.03
1000
$452.12
SKU:
120-3-SYN-NO11-RENOLD
Renold Synergy 120-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- $645.88 ex VAT
- Sale price
- $645.88
- Regular price
-
Description

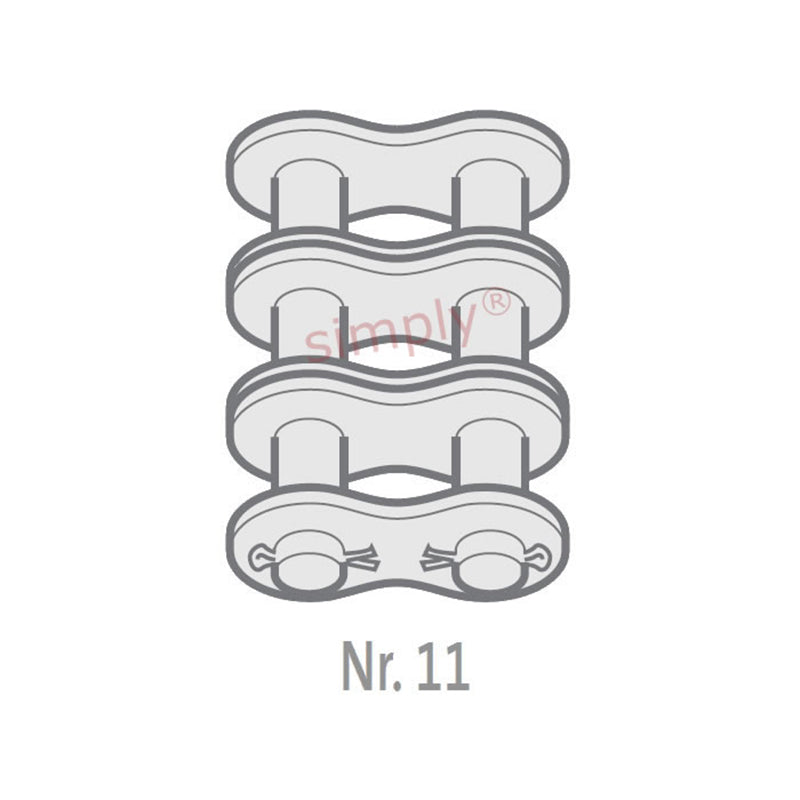

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.23mm |
| Roller Diameter max (C) | = | 22.23mm |
| Plate Height max (D) | = | 36.2mm |
| Plate Width Inner max (E) | = | 4.8mm |
| Plate Width Outer max (F) | = | 4.8mm |
| Pin Diameter max (G) | = | 11.11mm |
| Pin Length max (H2) | = | 140.2mm |
| Connecting Link Extension max (J) | = | 5.3mm |
| Transverse Pitch nom (K) | = | 45.44mm |
| ISO606 Tensile Strength min | = | 375000 N |
| Weight | = | 0.15kg/m |
