SKU: 12.5SS316-JUB

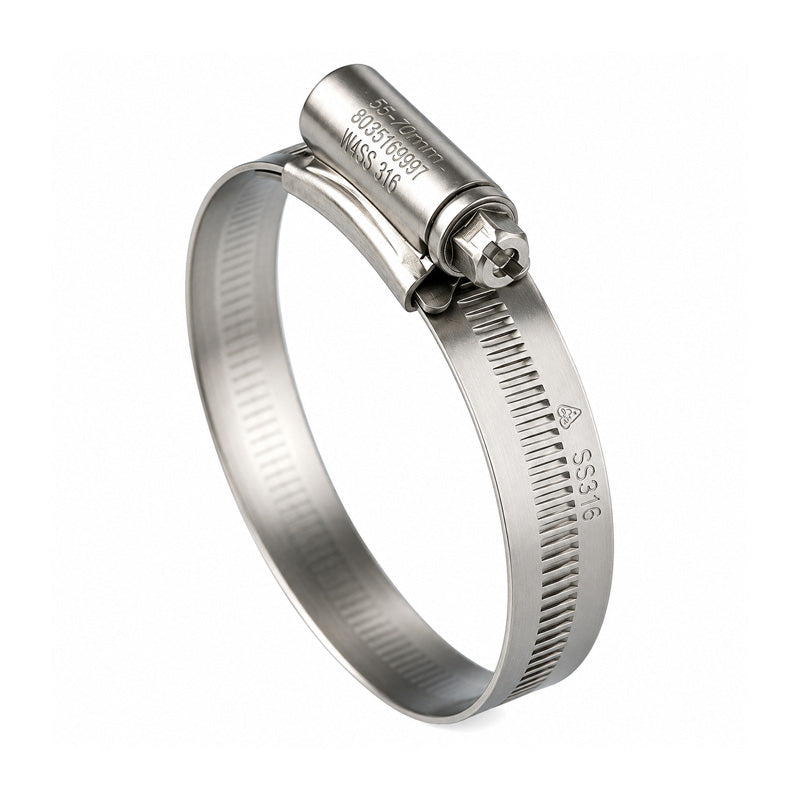

12.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 286mm - 318mm Band Width 13mm
- Regular price
- $21.96 ex VAT
- Sale price
- $21.96
- Regular price
-
Not in stock
Quantity Price Breaks
3
$19.54
5
$18.45
9
$18.23
19
$18.01
49
$17.79
74
$17.57
99
$16.47
199
$16.25
249
$16.03
499
$15.81
999
$15.37
SKU:
12.5SS316-JUB
12.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 286mm - 318mm Band Width 13mm
- Regular price
- $21.96 ex VAT
- Sale price
- $21.96
- Regular price
-
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
Technical
| BS No. | = | 318 |
| Adjustment Range | = | 286mm - 318mm |
| Adjustment Range | = | 11-1/4 - 12-1/2 inch |
| Band Width (+/- 0.1) | = | 13mm |
| Band Thickness (+/- 0.1) | = | 0.914mm |
| Recommended Torque | = | 5.9Nm |
| Maximum Torque | = | 7.9Nm |
| Maximum Pressure | = | 18 Psi |
