SKU: 10B-3-SD-NO12-RENOLD
Renold SD 10B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- $19.48 ex VAT
- Sale price
- $19.48
- Regular price
-
In stock
Quantity Price Breaks
2
$17.34
5
$16.36
10
$16.17
29
$15.97
49
$15.78
75
$15.58
100
$14.61
200
$14.42
250
$14.22
500
$14.03
1000
$13.64
SKU:
10B-3-SD-NO12-RENOLD
Renold SD 10B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- $19.48 ex VAT
- Sale price
- $19.48
- Regular price
-
Description

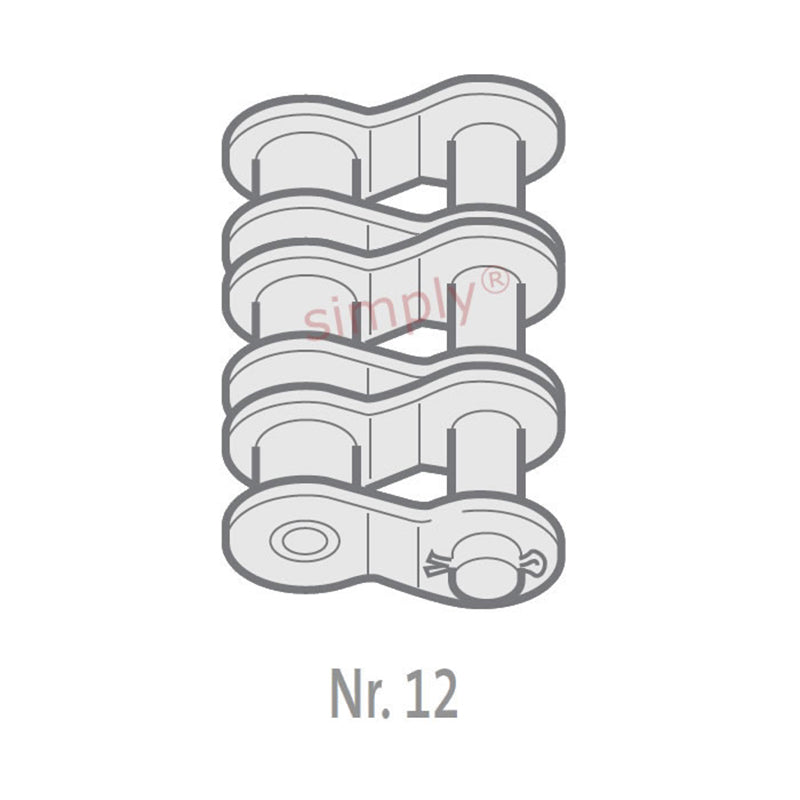

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.7mm |
| Plate Width Inner max (E) | = | 1.65mm |
| Plate Width Outer max (F) | = | 1.65mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 53.2mm |
| Connecting Link Extension max (J) | = | 4.2mm |
| ISO606 Tensile Strength min | = | 66650 N |
| Weight | = | 0.018kg/m |
