SKU: 10B-2-BB-NO12-RENOLD
Renold Blue Box 10B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- $29.33 ex VAT
- Sale price
- $29.33
- Regular price
-
In stock
Quantity Price Breaks
2
$26.10
5
$24.64
10
$24.34
29
$24.05
49
$23.76
75
$23.46
100
$22.00
200
$21.70
250
$21.41
500
$21.12
1000
$20.53
SKU:
10B-2-BB-NO12-RENOLD
Renold Blue Box 10B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- $29.33 ex VAT
- Sale price
- $29.33
- Regular price
-
Description

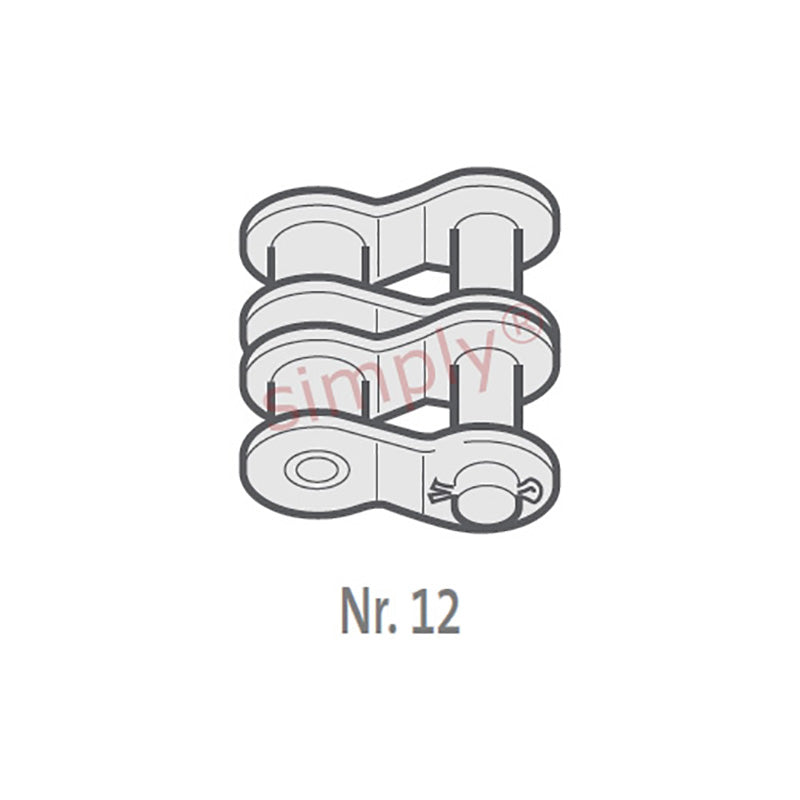

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 35.4mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.009kg/m |
