SKU: 1040-40DECG-RHP

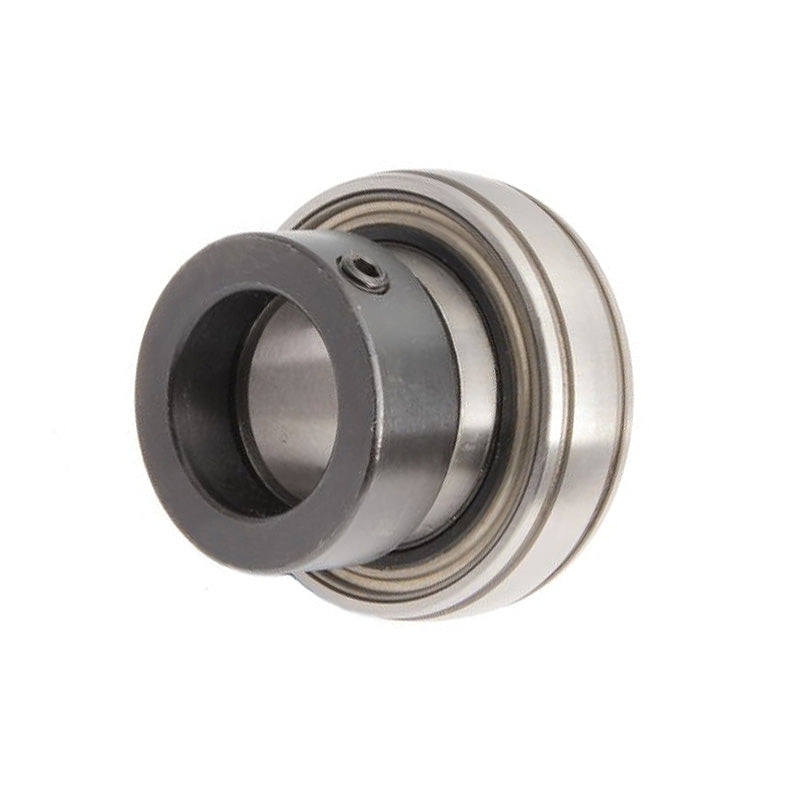

RHP 1040-40DECG Spherical Outer Full Width Bearing Insert 40mm Bore 80mm Outside Diameter
- Regular price
- $100.15 ex VAT
- Sale price
- $100.15
- Regular price
-
In stock
Quantity Price Breaks
10
$89.13
20
$84.13
30
$83.12
40
$82.12
50
$81.12
75
$80.12
100
$75.11
200
$74.11
250
$73.11
500
$72.11
1000
$70.11
SKU:
1040-40DECG-RHP
RHP 1040-40DECG Spherical Outer Full Width Bearing Insert 40mm Bore 80mm Outside Diameter
- Regular price
- $100.15 ex VAT
- Sale price
- $100.15
- Regular price
-
Description
|
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing |
Technical
| Bore | = | 40mm |
| D | = | 80mm |
| C | = | 18mm |
| B3 | = | 56.34mm |
| s2 | = | 21.46mm |
| d2 | = | 60.3mm |
| r | = | 0.1mm |
| Dynamic load Cr | = | 32500 N |
| Static load Cor | = | 19900 N |
| Rec max speed | = | 4000 rpm |
| Weight | = | 0.82 kg |
