SKU: 1040-35KG-RHP

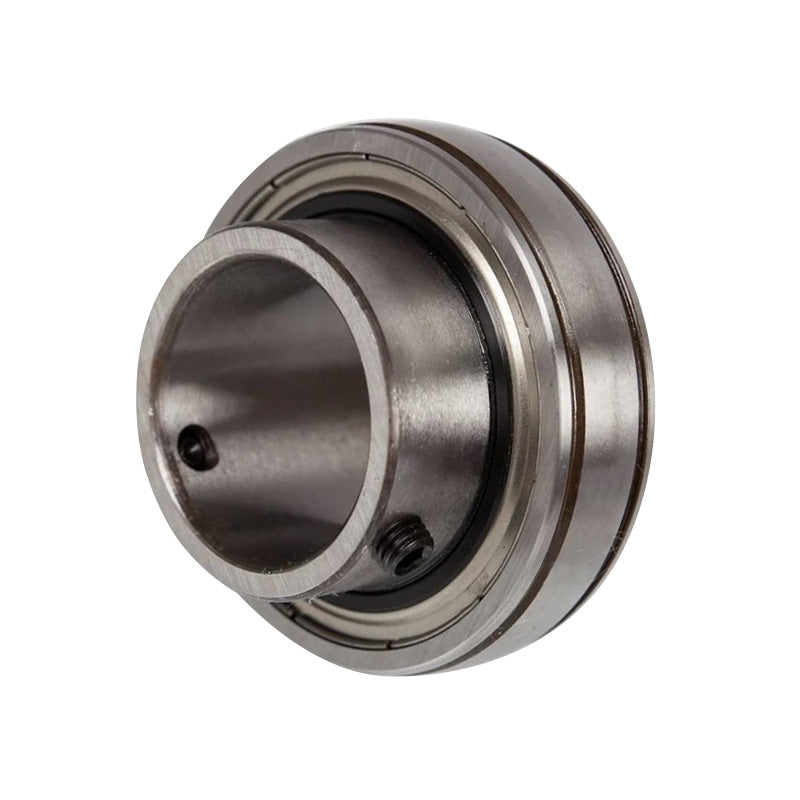

RHP 1040-35KG Spherical Outer Taper Bore Bearing Insert and H308 Sleeve with 35mm Shaft 80mm Outside Diameter
- Regular price
- $100.48 ex VAT
- Sale price
- $100.48
- Regular price
-
Not in stock
Quantity Price Breaks
10
$89.43
20
$84.40
30
$83.40
40
$82.39
50
$81.39
75
$80.38
100
$75.36
200
$74.36
250
$73.35
500
$72.35
1000
$70.34
SKU:
1040-35KG-RHP
RHP 1040-35KG Spherical Outer Taper Bore Bearing Insert and H308 Sleeve with 35mm Shaft 80mm Outside Diameter
- Regular price
- $100.48 ex VAT
- Sale price
- $100.48
- Regular price
-
Description
|
RHP 1000 KG Series: Taper bore bearing insert with spherical outer race and taper sleeve, lock washer and lock nut to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. The taper sleeve supplied makes the job of fitting simple as the bearing can be positioned easily prior to locking to the shaft. |
Technical
| Bore | = | 35mm |
| D | = | 80mm |
| C | = | 18mm |
| B4 | = | 22mm |
| B5 | = | 36mm |
| B6 | = | 10mm |
| d | = | 40mm |
| d1 | = | 52.7mm |
| d4 | = | 58mm |
| r | = | 1mm |
| Dynamic load Cr | = | 32500 N |
| Static load Cor | = | 19900 N |
| Rec max speed | = | 4000 rpm |
| Weight | = | 0.54 kg |
| Supplied sleeve | = | H308 |
