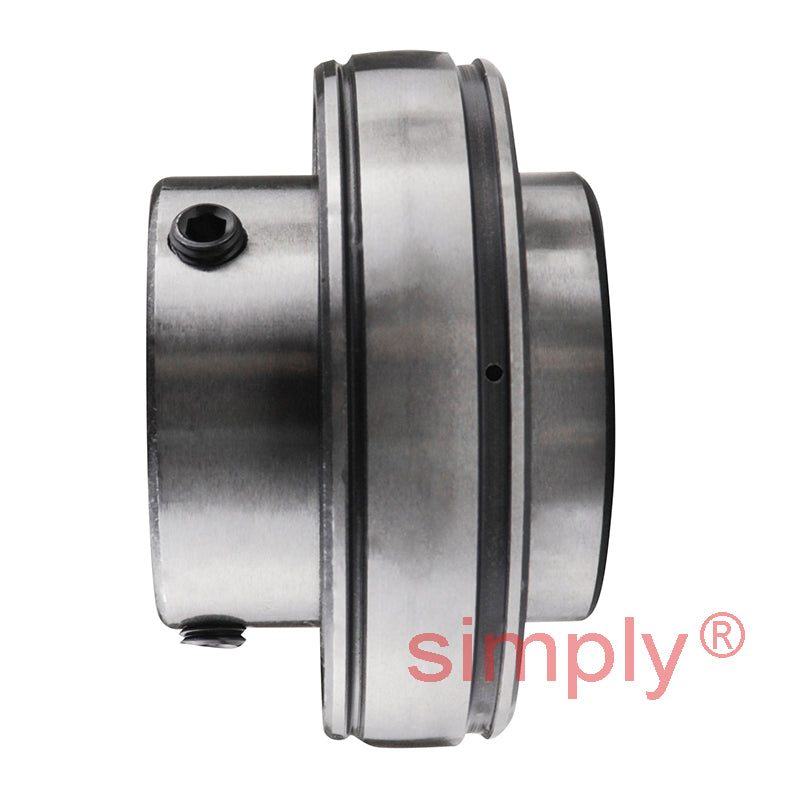

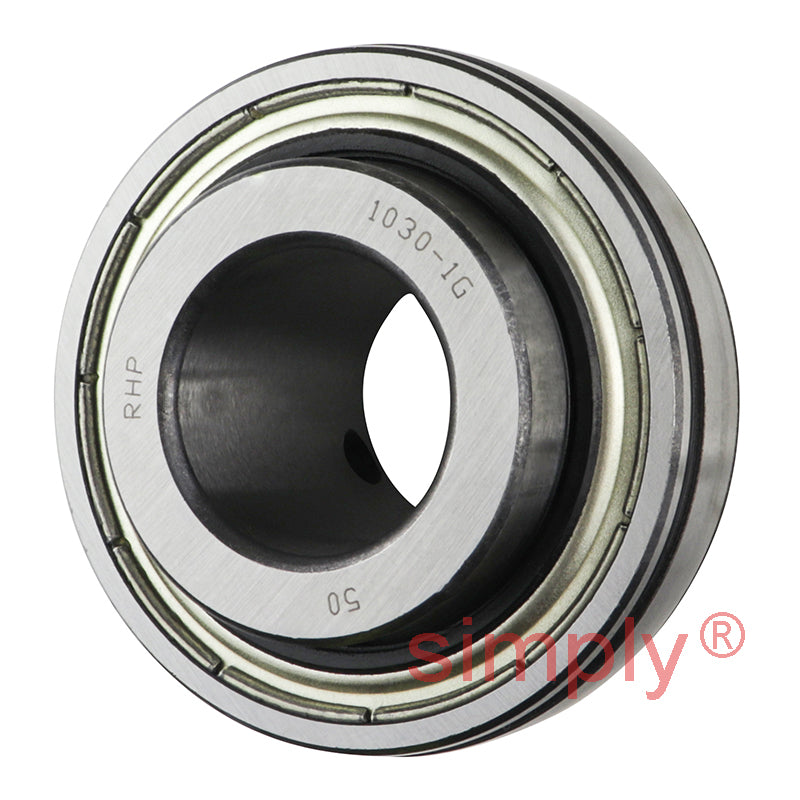

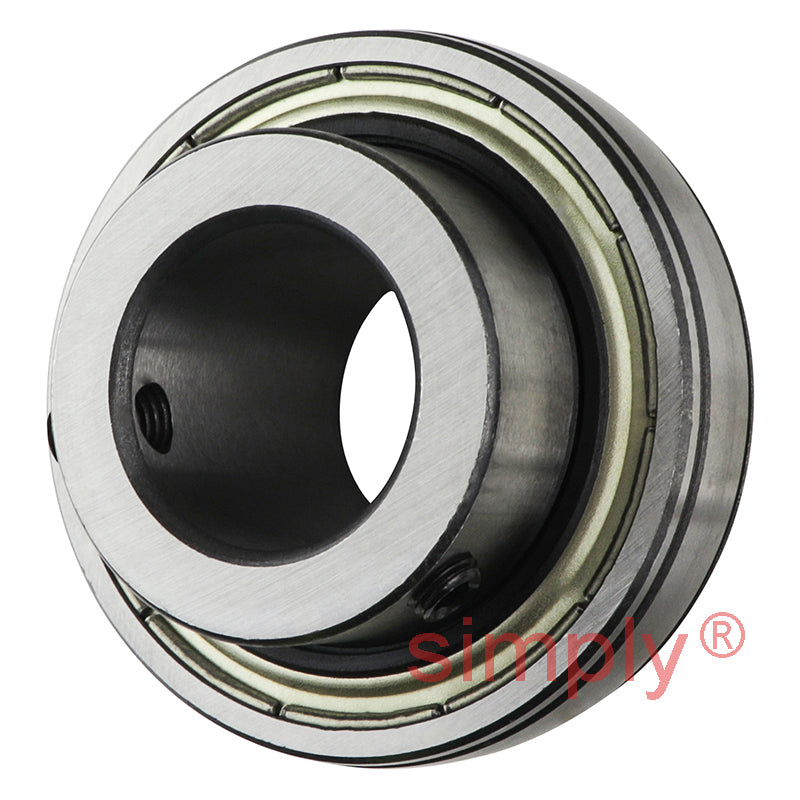

RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter
RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter
RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter
RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter
RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter
RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter

SKU: 1030-1G-RHP

RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter

$56.06 ex VAT
$56.06
ex VAT
In stock

Quantity Price Breaks

10 $49.89
20 $47.09
30 $46.53
40 $45.97
50 $45.41
75 $44.85
100 $42.05
200 $41.48
250 $40.92
500 $40.36
1000 $39.24
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter
RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter
RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter
SKU: 1030-1G-RHP

RHP 1030-1G Spherical Outer Full Width Bearing Insert 1 inch Bore 62mm Outside Diameter

$56.06 ex VAT
$56.06
ex VAT

Description

RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Technical

Bore = 1 inch
D = 2.4409 inch
C = 0.63 inch
B = 1.5 inch
s = 0.627 inch
d1 = 1.575 inch
M = 0.23 inch
r = 0.039 inch
Dynamic load Cr = 19500 N
Static load Cor = 11300 N
Rec max speed = 5300 rpm
Weight = 0.37 kg
