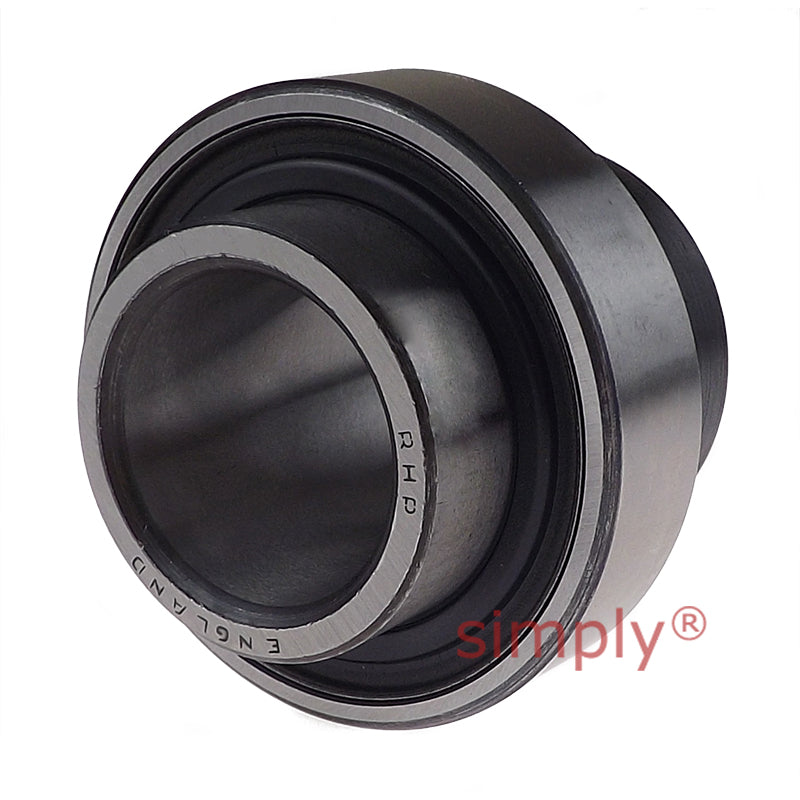

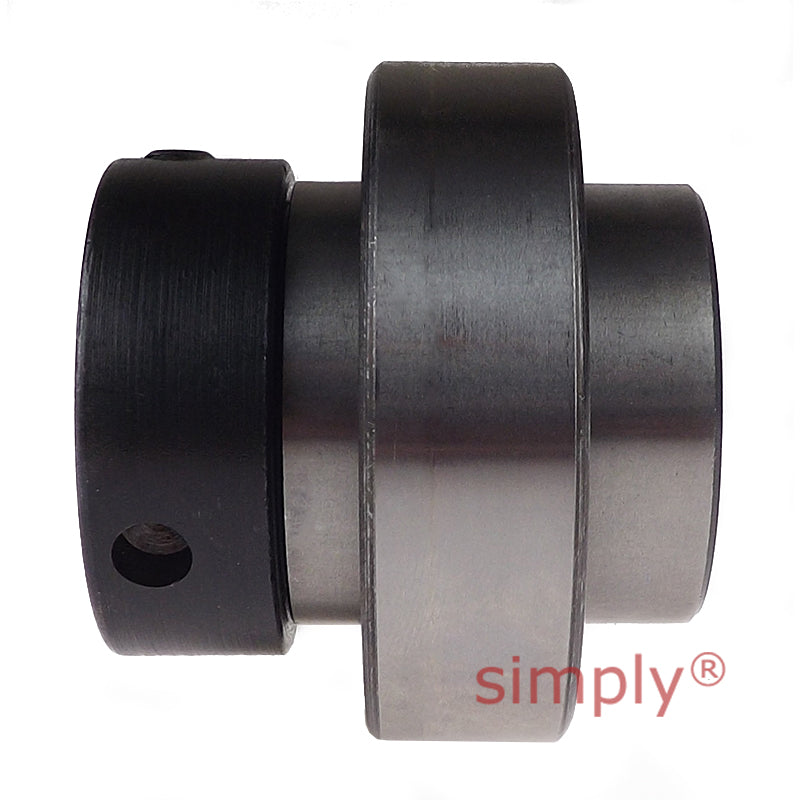

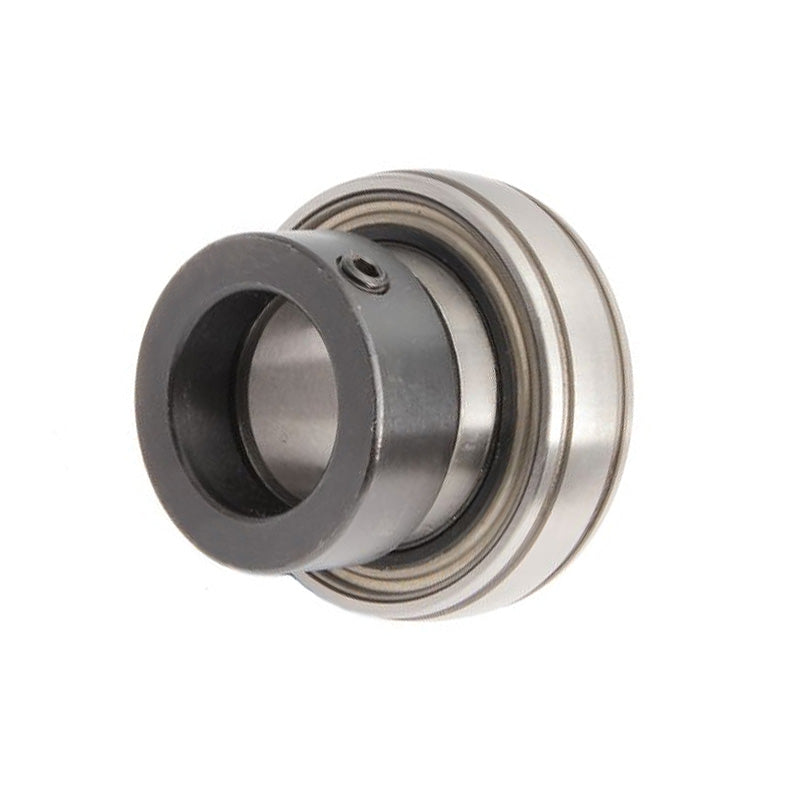

RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter

SKU: 1030-1.1/8DECG-RHP

RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter

$72.96 ex VAT
$72.96
ex VAT
Not in stock

Quantity Price Breaks

10 $64.93
20 $61.29
30 $60.56
40 $59.83
50 $59.10
75 $58.37
100 $54.72
200 $53.99
250 $53.26
500 $52.53
1000 $51.07
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
SKU: 1030-1.1/8DECG-RHP

RHP 1030-1-1/8DECG Spherical Outer Full Width Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter

$72.96 ex VAT
$72.96
ex VAT

Description

RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing

Technical

Bore = 1-1/8 inch
D = 2.4409 inch
C = 0.63 inch
B3 = 1.906 inch
s2 = 0.721 inch
d2 = 1.75 inch
r = 0.039 inch
Dynamic load Cr = 19500 N
Static load Cor = 11300 N
Rec max speed = 5300 rpm
Weight = 0.53 kg
