SKU: 100-3-SD-NO12-RENOLD
Renold SD 100-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
- Regular price
- $112.85 ex VAT
- Sale price
- $112.85
- Regular price
-
Not in stock
Quantity Price Breaks
2
$100.44
5
$94.79
10
$93.67
29
$92.54
49
$91.41
75
$90.28
100
$84.64
200
$83.51
250
$82.38
500
$81.25
1000
$79.00
SKU:
100-3-SD-NO12-RENOLD
Renold SD 100-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
- Regular price
- $112.85 ex VAT
- Sale price
- $112.85
- Regular price
-
Description

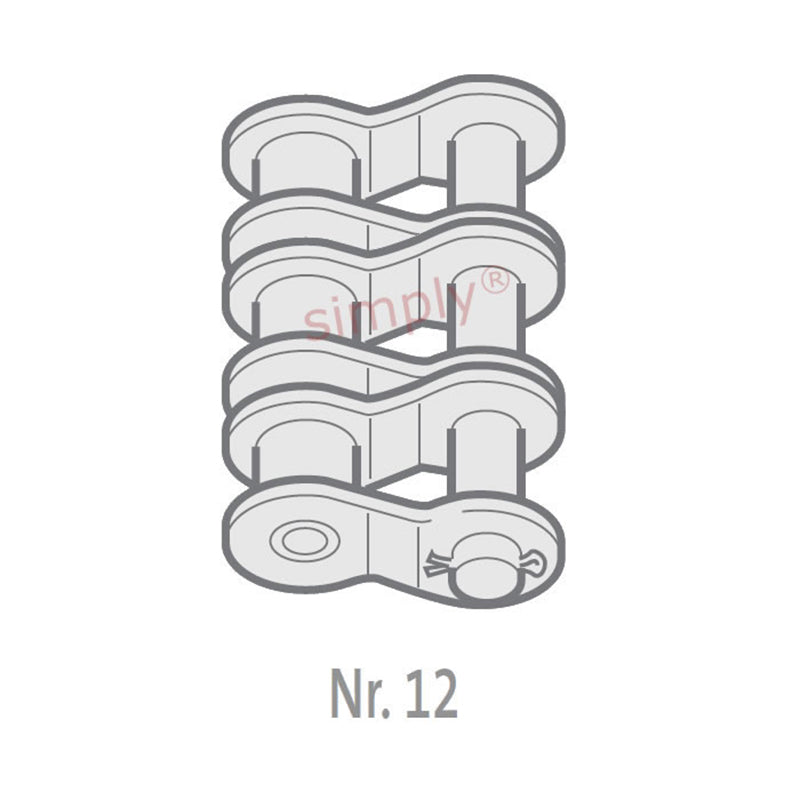

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 18.9mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 30.1mm |
| Plate Width Inner max (E) | = | 3.9mm |
| Plate Width Outer max (F) | = | 3.9mm |
| Pin Diameter max (G) | = | 9.53mm |
| Pin Length max (H1) | = | 107.2mm |
| Connecting Link Extension max (J) | = | 9.60000000000001mm |
| ISO606 Tensile Strength min | = | 261000 N |
| Weight | = | 35.76kg/m |
