SKU: 10.5x16x5.8_WP14_NAK

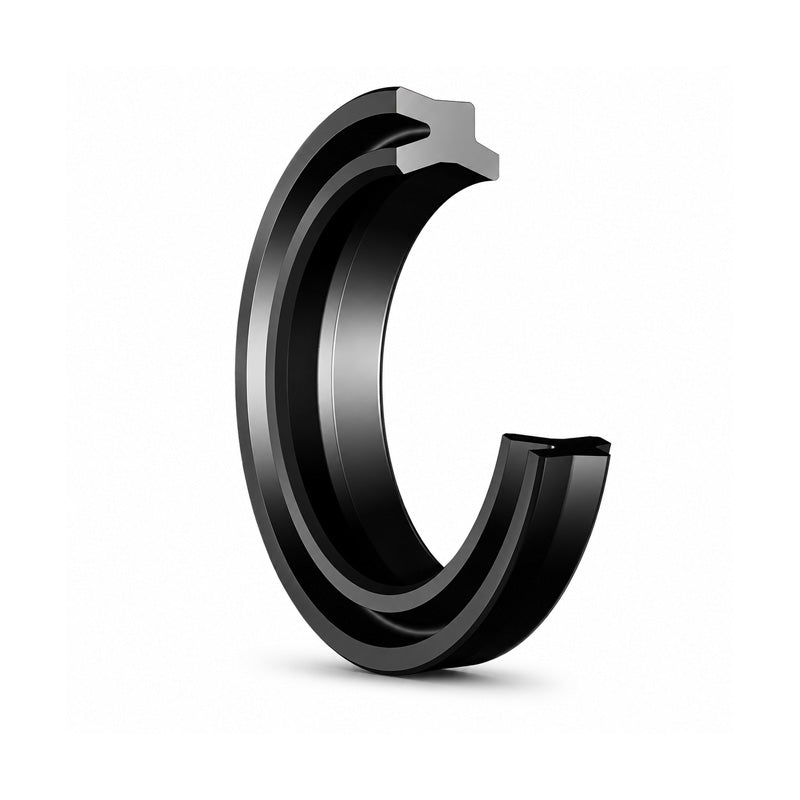

NAK 10.5x16x5.8mm WP14 Nitrile Wiper Seal - Allow 7-10 Days
- Regular price
- $5.98 ex VAT
- Sale price
- $5.98
- Regular price
-
Not in stock
Quantity Price Breaks
10
$5.32
19
$5.02
29
$4.96
39
$4.90
49
$4.84
74
$4.78
99
$4.49
199
$4.43
249
$4.37
499
$4.31
999
$4.19
SKU:
10.5x16x5.8_WP14_NAK
NAK 10.5x16x5.8mm WP14 Nitrile Wiper Seal - Allow 7-10 Days
- Regular price
- $5.98 ex VAT
- Sale price
- $5.98
- Regular price
-
Description
NAK WP14 Wiper Seals: WP14 wiper seals are specialised dust-exclusion seals engineered to safeguard hydraulic and pneumatic systems against contamination. As the first variant in NAK's Type WP series, the WP14 is designed with a straightforward yet highly effective profile that ensures long-term protection in heavy-duty applications. The primary purpose of the WP14 is to wipe away dust, dirt, mud, moisture, and other external debris to help maintain hydraulic system efficiency.
Benefits: Durable, easy installation, reliable performance

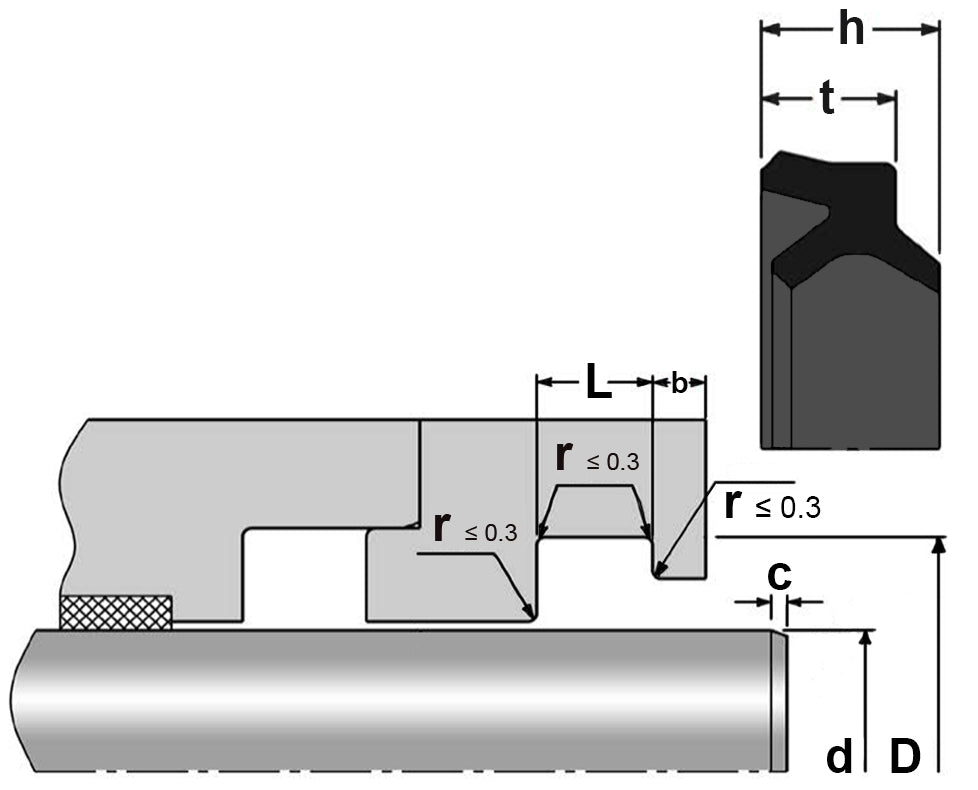

Technical
| d | = | 10.5mm |
| D | = | 16mm |
| L | = | 4.7mm |
| b | = | 2 |
| t | = | 4.2mm |
| h | = | 5.8mm |
| c | = | 1.5mm |
| Inside Diameter Tolerance | = | f13 |
| Outside Diameter Tolerance | = | 0.2mm |
| Length Tolerance | = | 0.2mm |
| Running Speed v | = | 6 m/s |
| Temperature | = | -35 Deg C to +100 Deg C |
| Colour | = | Black |
