SKU: 08B-3-BB-NO11-RENOLD
Renold Blue Box 08B-3-NO11 BS Triplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- $21.37 ex VAT
- Sale price
- $21.37
- Regular price
-
In stock
Quantity Price Breaks
2
$19.02
5
$17.95
10
$17.74
29
$17.52
49
$17.31
75
$17.10
100
$16.03
200
$15.81
250
$15.60
500
$15.39
1000
$14.96
SKU:
08B-3-BB-NO11-RENOLD
Renold Blue Box 08B-3-NO11 BS Triplex Chain Cottered Connecting Link 1/2 inch Pitch
- Regular price
- $21.37 ex VAT
- Sale price
- $21.37
- Regular price
-
Description

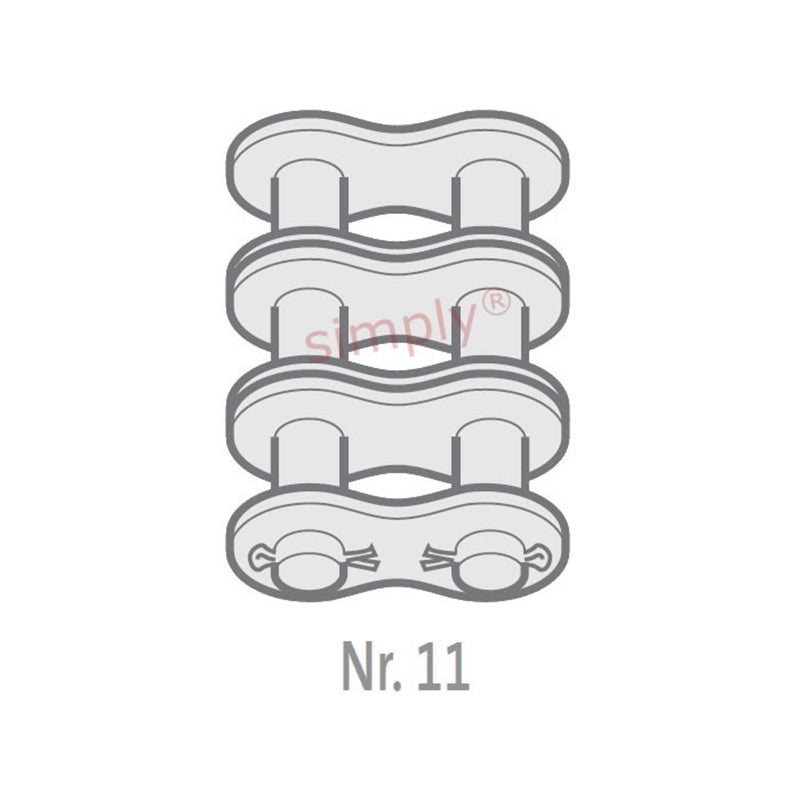

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 44.3mm |
| Connecting Link Extension max (J) | = | 2mm |
| Transverse Pitch nom (K) | = | 13.92mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.003kg/m |
