SKU: 08B-1-BB-NO12-RENOLD
Renold Blue Box 08B-1-NO12 BS Simplex Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- $17.19 ex VAT
- Sale price
- $17.19
- Regular price
-
In stock
Quantity Price Breaks
2
$15.30
5
$14.44
10
$14.27
29
$14.10
49
$13.92
75
$13.75
100
$12.89
200
$12.72
250
$12.55
500
$12.38
1000
$12.03
SKU:
08B-1-BB-NO12-RENOLD
Renold Blue Box 08B-1-NO12 BS Simplex Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- $17.19 ex VAT
- Sale price
- $17.19
- Regular price
-
Description

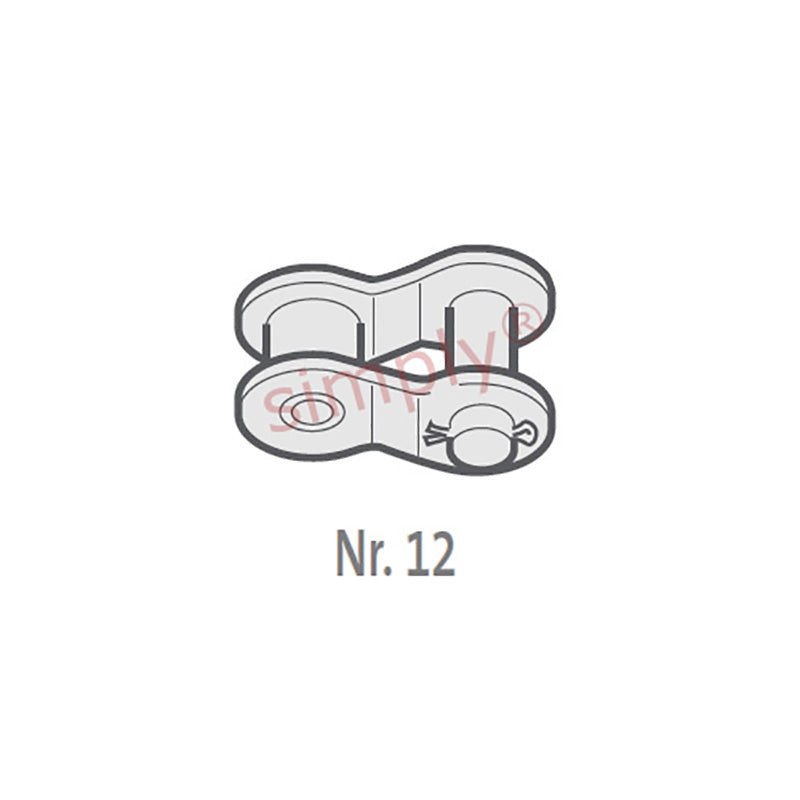

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H1) | = | 16.5mm |
| Connecting Link Extension max (J) | = | 2mm |
| ISO606 Tensile Strength min | = | 17800 N |
| Weight | = | 0.003kg/m |
